Mini PC&Mini host
01
Miniature home-use Mini PC
Product Detailed Specification
| Processor specifications | CPU: | Intel Tiger Lake-U 28W CPU Core i7-1165G7/Core i5-1135G7/Core i3- 1115G4 ect. |
Internal storage | Memory type: | DDR4 2133MHz/2400MHz/2666MHz |
| Memory slot: | 2XDDR4 S0-DIMM | ||||
| video card: | Intel®UHD Graphics Support for 3-display | Power port: | 1XDC Jack 5.5*2.5mm(12-19V) | ||

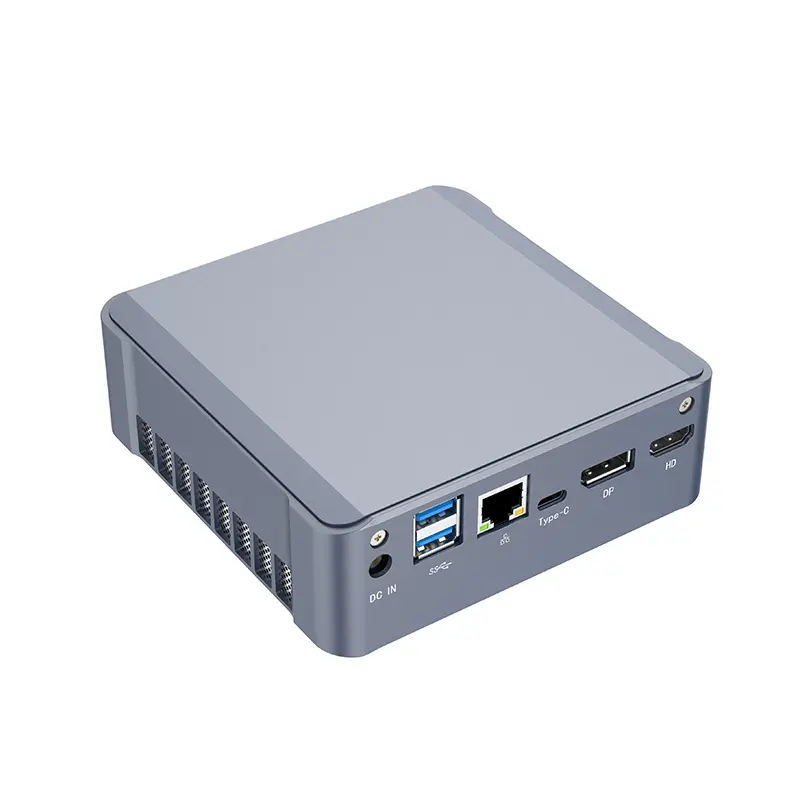

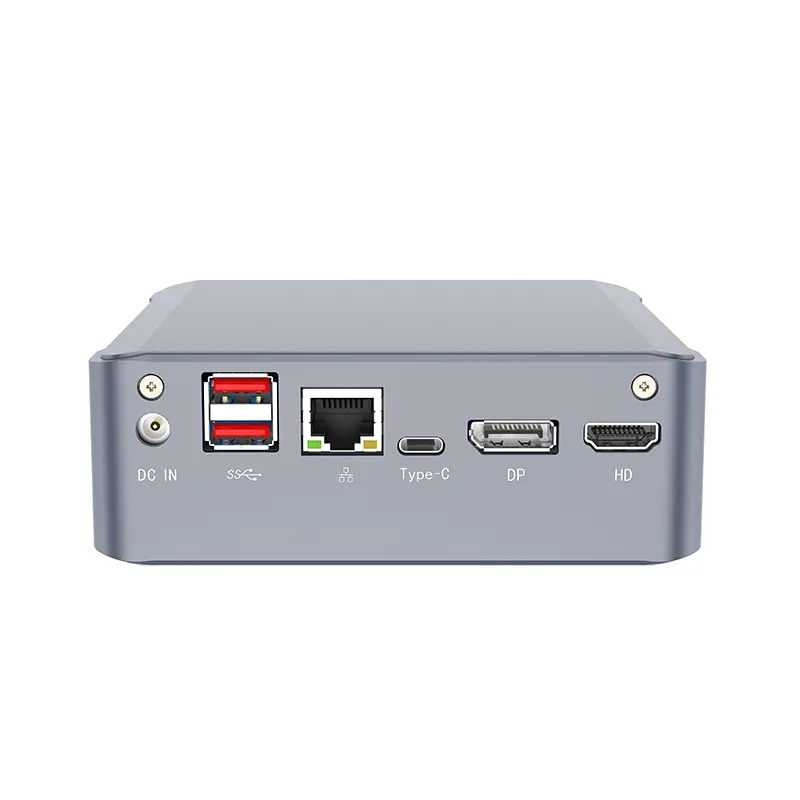

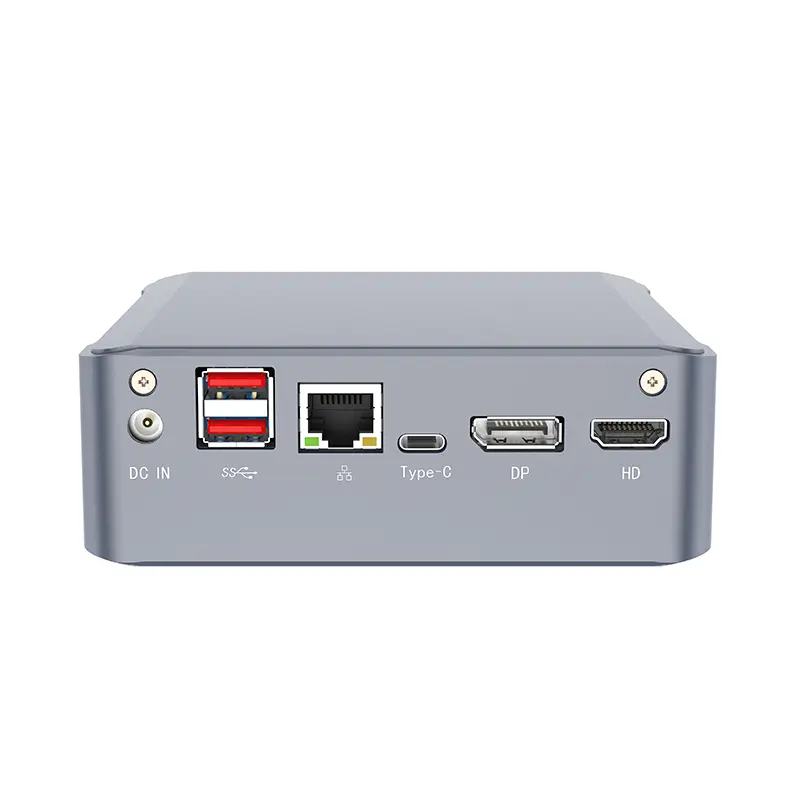

| Front panel | Power-on key | Power button | Back panel | network interface: | 1X RJ45 1000M/2500M |
| Indicator light: | 1*Power LED 1*HDD LED | Displays the interface: | 1×HDMI Out 2.0 1×DP 1.4 1×Type-C Thunderbolt 4 |
||
| USB joggle: | 2XUSB3.0 2XUSB2.0 | USB joggle: | 2XUSB3.0 | ||
| Type-C: | 1XType-C | ||||
| Audio interface: | 1×3.5mm earphone 1×3.5mm MIC in | ||||
| Extended slot | WiFi slot: | 1 XM. 22230 slot (WIFI / BT support) WIFI 1:802.11 b / g / n / AC / AX Bluetooth 4.0 or above |

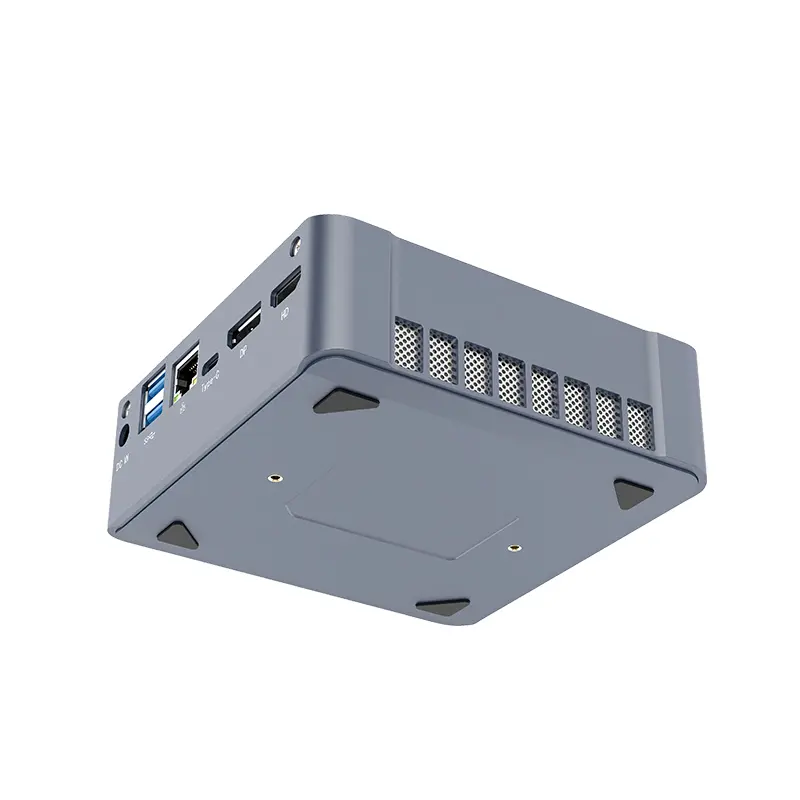

Other parameters | Appearance size: | 128*128*45mm |
| SSD slot: | 1×M.2 2280 slot (supports SATA/NVME Gen3 X4) 1×M.2 2280 slot (SATA or NVME) |
Ontology weight: | About 480g | ||
| HDD: | 1*SATA HDD 2.5inch (optional) | Power adapter: | 12V-19V 65W | ||
| BI0S support: | AMI UEFI BI0S, Support for PXE, WOL | ||||
| Work environment： | Temperature: 0~50℃ Humidity: 5%~95% | Storage environment： | Temperature: -20~70℃ Humidity: 5%~95% | ||
Core architecture innovation: redefining performance density in compact space
As a Small Desktop PC designed for industrial automation, creative design and financial transactions, the NX-200 unleashes the powerful performance of the Intel Tiger Lake-U processor in a 0-50℃ environment with its 128×128×45mm hypercube architecture and 480g ultra-lightweight design. Equipped with i7-1165G7 (4 cores and 8 threads, 4.7GHz turbo frequency) and Intel Iris Xe core graphics, it supports triple-screen 4K output, Thunderbolt 4 high-speed interconnection and dual-mode storage architecture, providing boundless productivity for machine vision, high-frequency trading and mobile office.
The difference between Small Desktop PC and the main computer on the market makes you more aware of the advantages of this product
1. Three-screen heterogeneous output: desktop-level expansion of micro devices
Display matrix: HDMI 2.0 (4K@60Hz) + DP 1.4 (8K@30Hz) + Thunderbolt 4 (8K@60Hz + 65W PD power supply)
Industrial control: the main screen runs the SCADA system, the DP interface outputs the device heat map, and Thunderbolt 4 directly connects to the PLC debugging terminal
Creative design: the main screen edits 4K video, the secondary screen displays the LUT color palette, and Thunderbolt 4 connects to the SSD library (40Gbps transmission)
Intel Iris Xe core graphics supports 10-bit color depth and hardware decoding AV1 format, and 8K video playback power consumption is reduced by 30%
2. Dual PCIe Gen3 storage architecture: a double breakthrough in speed and capacity
Dual M.2 slots (NVMe Gen3x4 + SATA) support RAID 0/1 mode:
Video production: dual SSD RAID 0 achieves 6,800MB/s reading, 8K RAW material real-time editing
Data security: NVMe system disk + SATA mechanical disk cold standby, MTBF increased to 120,000 hours
2.5-inch HDD anti-vibration bracket (50G impact protection), suitable for vehicle inspection equipment
3. Thunderbolt 4 ecosystem: cross-border connection of micro hosts will make you more convenient and practical
Single interface achieves 40Gbps data transmission/8K display/90W reverse power supply:
External graphics card dock (RTX 4060) accelerates Blender rendering
Directly connected to 8K capture card, OBS multi-platform streaming delay <15ms
Daisy chain technology connects 3 4K monitors in series to build an immersive trading dashboard
Industrial-grade technology innovation
1. Ultra-compact heat dissipation architecture
Heat spreader + nano silicon carbide coating heat dissipation, CPU temperature ≤68℃ at full load in 45℃ environment
Intelligent switching between fanless design (0-35℃) and turbo active heat dissipation (36-50℃)
2. Dual-band WiFi 6 + Bluetooth Mesh networking
Intel AX201 module supports 160MHz bandwidth (2.4Gbps rate), and multi-device concurrency delay is reduced by 60%
Bluetooth Mesh function connects more than 30 industrial-grade sensors, and its coverage radius reaches 150 meters (barrier-free environment), making it more convenient for you to use in real life
3. Wide voltage and wide temperature industrial certification
12-19V power input compatible with vehicle inverter (fluctuation tolerance ±30%)
-20℃ cold start technology, IP40 dustproof structure to cope with mine/port environment
Vertical industry solutions
1. Machine vision quality inspection station
DP interface outputs AI defect heat map, Thunderbolt 4 connected 3D linear array cameras
OpenVINO optimization, processing 2,000 product images per second
2. Mobile financial terminal
Three screens independently display global market data, Thunderbolt 4 encrypted direct connection to trading server
ECC memory mode (optional) ensures zero error in high-frequency trading
3. Smart medical gateway
HDMI direct connection to DICOM calibration display, Thunderbolt 4 powered portable ultrasound equipment
Antibacterial magnesium alloy shell (optional) + EN 60601-1 medical safety certification
OEM/ODM customized service
1. Deep hardware transformation
Extended PoE+ network port (30W power supply industrial camera)
Customized GPIO control board (8-way digital I/O, ±12V tolerance)
2. Enterprise-level software ecosystem
Pre-installed Windows 11 IoT Enterprise Edition/Ubuntu Core 24
Provide Modbus TCP/Profinet industrial protocol stack
3. Strict certification support
MIL-STD-810H military-grade drop protection (1.5-meter concrete drop)
IEC 60068-2-6 vibration certification (10Grms random vibration)
As a benchmark Small Desktop PC in the era of industrial IoT, NX-200 has become the preferred tool for smart manufacturing, financial technology and mobile medical care through triple-screen output, Thunderbolt 4 ecology and military-grade reliability. Now open to deep customization of hardware configuration, cooling solutions and appearance components, provide five-year global warranty and 24/7 technical support, to help customers build high-density edge computing nodes.
