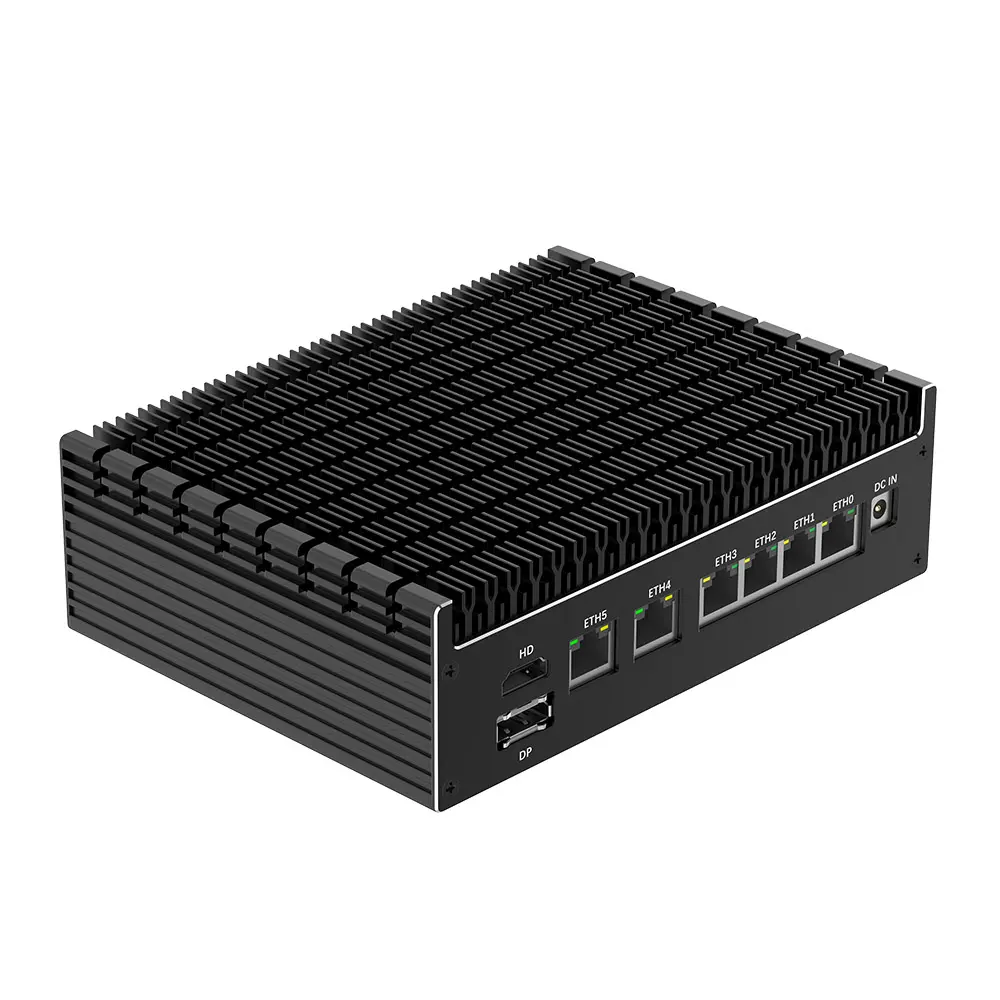

Fanless Industrial Mini PC with Multiple Network Ports BQR6
Product Detailed Specification
| Processor specifications | CPU: | Intel Comet Lake-U 15W Core i7-10510U / i5-10210U / i3-10110U 5205U | Internal storage | Memory type: | DDR4 2133MHz/2400MHz/2666MHz |
| Video card: | Intel® UHD Graphics Support for 3-display | Memory slot: | 1*DDR4 S0-DIMM | ||

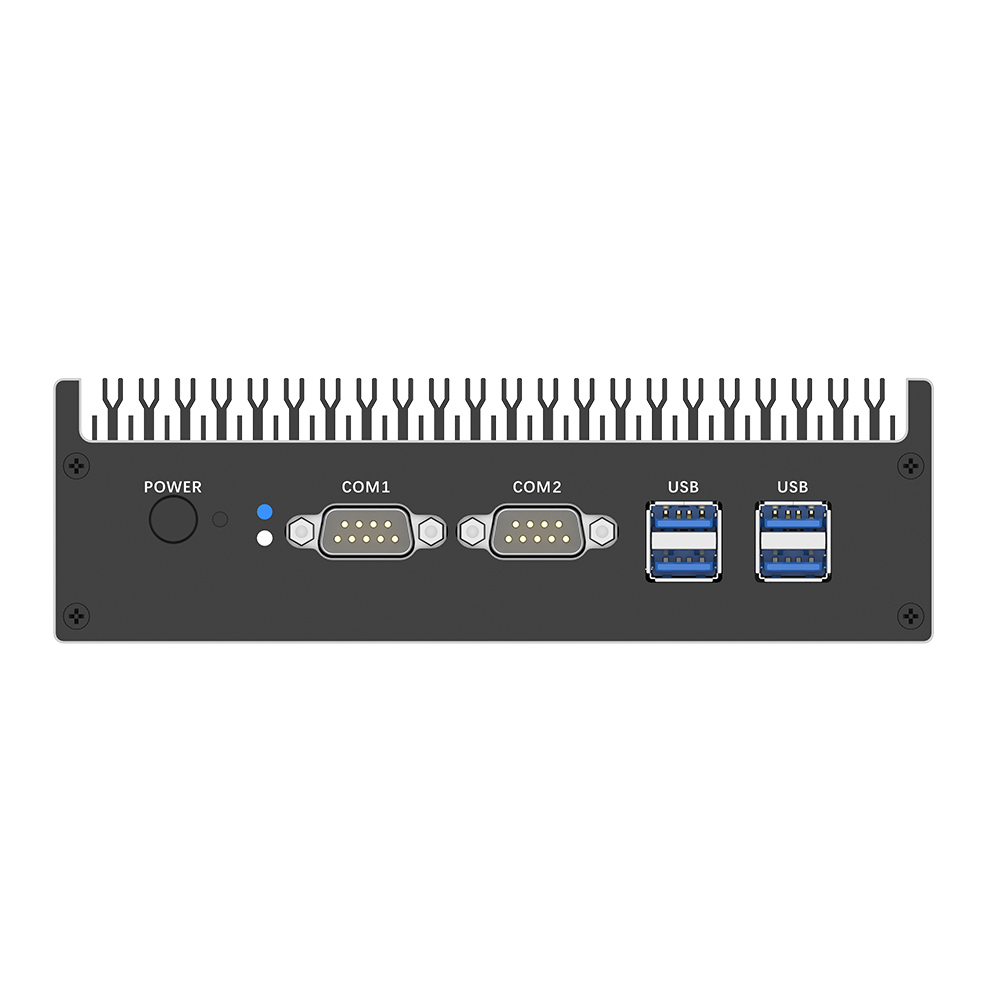

| Front panel | Boot button: | 1*Power-on button and 1*Reset | Back panel | Power port: | 1*DC Jack 5.5*2.5mm(12-19V) |
| Pilot lamp: | 1*Power LED 1*HDD LED | Network interface: | 6*RJ45 2500M (where LAN5 and R_USB4 Colay, either option) | ||
| USB joggle: | 4*USB3.0 | Displays the interface: | 1* HDMI 0ut 1.4 1*DP 1.2 | ||
| COM mouth: | 2*RS232 DB9 | USB joggle: | 2 *USB 2.0 (or LAN5) | ||
| Extended slot | WiFi slot: | 1*M. 2 2230 slot (WIFI / BT support) WIFI: 802.11 b / g / n / AC / AX Bluetooth 4.0 or above |
Other parameters | Appearance size: | 170*126*51.3mm |
| SSD slot: | 1*M. 22280 slot (SATA / NVME Gen3 X4) | Ontology weight: | About 945g | ||
| HDD: | 1*SATA HDD 2.5 inch (optional) | Power adapter: | 12V-19V 40W | ||
| BI0S support: | AMI UEFI BI0S, Support for PXE, WOL | ||||
| Work environment: | Temperature: 0~50℃ Humidity: 5%~95% | Storage environment: | Temperature: -20~70℃ Humidity: 5%95% | ||
Intel Comet Lake-U processor
1. Intel Comet Lake-U processor: low-power, high-computing industrial heart
Equipped with Intel's 10th-generation Core i7-10510U to Celeron 5205U processors (4 cores, 8 threads, 15W TDP), it achieves a precise balance between performance and power consumption through dynamic frequency modulation technology (1.1GHz~4.9GHz).
Computing power measurement:
Multi-tasking: Drive 6-way 2.5G network data packet forwarding at the same time, CPU occupancy ≤35%
Graphics acceleration: Intel UHD Graphics supports three-screen display (HDMI 1.4+DP 1.2+VGA extension), 4K H.265 decoding delay <8ms

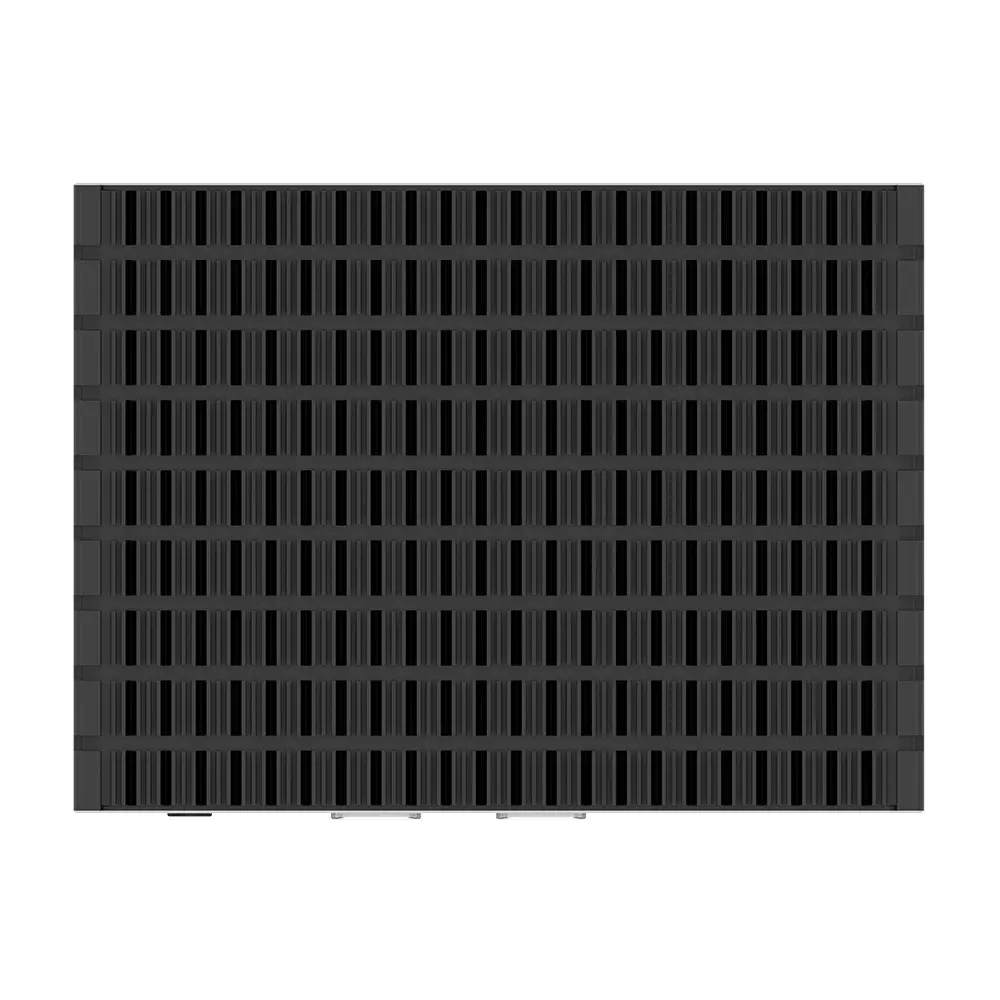

Cooling architecture: Fanless aluminum fin passive cooling design, continuous full load operation without frequency reduction at 50℃ ambient temperature
Graphics acceleration: Intel UHD Graphics supports three-screen display (HDMI 1.4+DP 1.2+VGA extension), 4K H.265 decoding delay <8ms
Cooling architecture: Fanless aluminum fin passive cooling design, continuous full load operation without frequency reduction at 50℃ ambient temperature
2. 6*2.5G network port + dual COM port: Industrial IoT hub platform
Network topology:
6-way RJ45 2.5G network port (including LAN5 and USB4 multiplexing interface), support VLAN division and port aggregation, bandwidth peak up to 15Gbps.
Hardware-level network isolation technology to ensure that PLC control/video monitoring/data acquisition services do not interfere with each other.
Hardware-level network isolation technology to ensure that PLC control/video monitoring/data acquisition services do not interfere with each other.
Industrial protocol compatibility:
Dual RS232 DB9 serial port supports Modbus RTU/Profibus protocol direct connection, baud rate adaptive (0~921.6kbps).
USB2.0 and GPIO expansion slots can be connected to special equipment such as barcode scanners/temperature sensors.
USB2.0 and GPIO expansion slots can be connected to special equipment such as barcode scanners/temperature sensors.
3. Modular storage and wireless expansion capabilities
Storage configuration:
1×M.2 2280 slot (NVMe/SATA dual protocol, maximum 4TB).
Optional 2.5-inch SATA HDD (anti-seismic design, passed 5Grms vibration test).
Optional 2.5-inch SATA HDD (anti-seismic design, passed 5Grms vibration test).
Wireless expansion:
M.2 2230 slot can be installed with WiFi 6 network card (802.11ax, 160MHz bandwidth) or Bluetooth 5.2 module.
Support LoRa/Zigbee gateway expansion (customized shell required).
Support LoRa/Zigbee gateway expansion (customized shell required).
4. Compact military-grade structural design

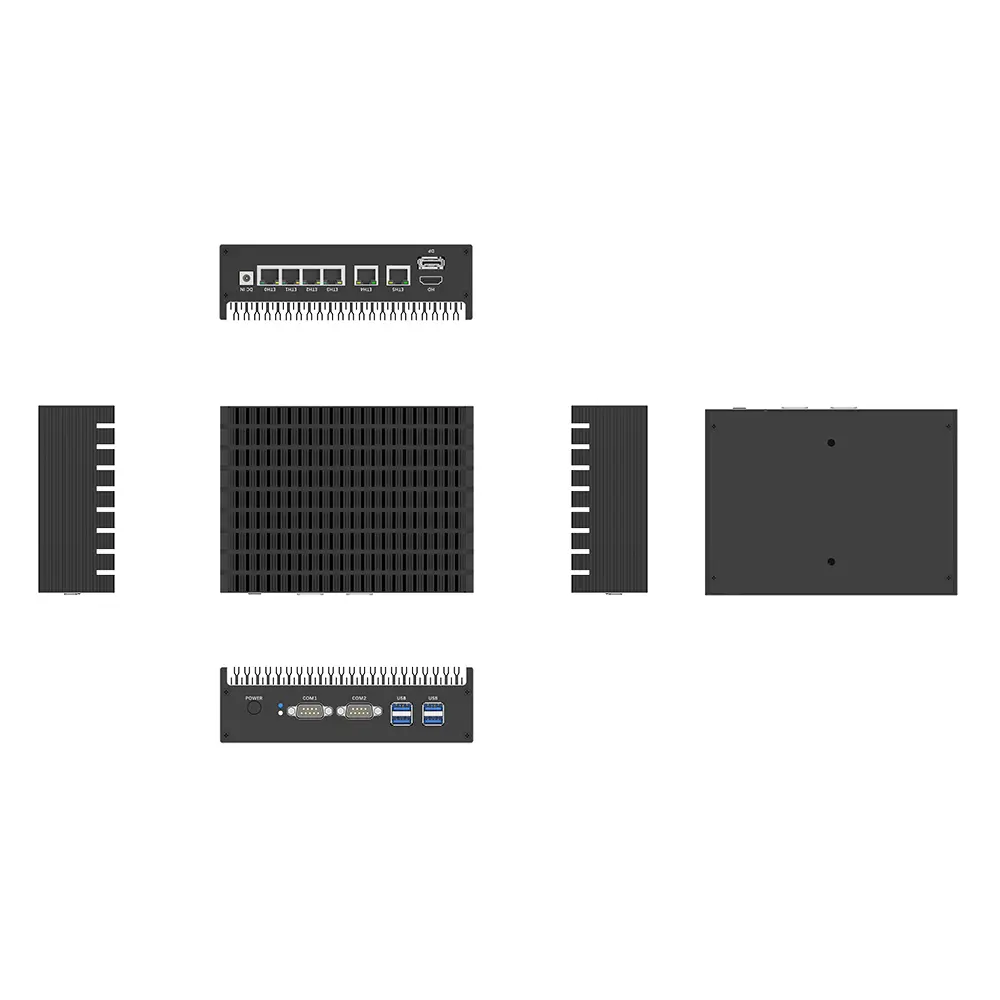

Mechanical engineering: 170×126×51.3mm full metal shell (weight 945g), IP40 protection level:
Surface hard anodized, salt spray corrosion resistance > 96 hours
Wall-mounted/guide rail dual installation mode, seismic performance up to 5G@10~500Hz
Surface hard anodized, salt spray corrosion resistance > 96 hours
Wall-mounted/guide rail dual installation mode, seismic performance up to 5G@10~500Hz
Intelligent power management:
12-19V wide voltage input (compatible with PoE++ power supply), 40W ultra-low power consumption.
Support WOL network wake-up and timed power on/off (±0.1% clock accuracy).
Support WOL network wake-up and timed power on/off (±0.1% clock accuracy).
Industry scenario solutions
1. Smart factory control center
Connect 32 PLC devices at the same time (6 network ports + serial port shunt), OPC UA protocol conversion delay <2ms.
Optional -20℃ low temperature startup kit, suitable for cold storage environment.
Optional -20℃ low temperature startup kit, suitable for cold storage environment.
2. Edge computing gateway
Equipped with TensorFlow Lite inference engine, supports 8-way camera AI behavior analysis (3.2TOPS computing power).
Local data preprocessing (LZO compression algorithm), bandwidth usage reduced by 70%.
Local data preprocessing (LZO compression algorithm), bandwidth usage reduced by 70%.
3. Digital signage control center
Three-screen display supports 4K menu board + 2×FHD advertising screen synchronous playback.
Timed task engine can preset 365-day playback schedule.
Timed task engine can preset 365-day playback schedule.
OEM/ODM customization service
Hardware deep adaptation:
BIOS customization: support SMARC module replacement/GPIO function remapping
Interface expansion: CAN bus/4G module/relay control board can be added
Enterprise-level operation and maintenance guarantee:
Remote management: integrated iAMT 11.0 technology, fault diagnosis response time <15 minutes
Firmware hot update: dual BIOS chip design to avoid upgrade interruption of business
Interface expansion: CAN bus/4G module/relay control board can be added
Enterprise-level operation and maintenance guarantee:
Remote management: integrated iAMT 11.0 technology, fault diagnosis response time <15 minutes
Firmware hot update: dual BIOS chip design to avoid upgrade interruption of business
Harsh environment verification:
Passed MIL-STD-810G impact test and IEC 60068-2-64 random vibration certification.
Operating temperature 0~50℃ (expandable -40~75℃ industrial wide temperature version).
Operating temperature 0~50℃ (expandable -40~75℃ industrial wide temperature version).
