Independent graphics card Game Mini PC X800
Product Detailed Specification
|
Processor specifications |
CPU terrace: |
Intel 8 / 9 / 10 generations 45W CPU |
Internal storage |
Memory type: |
DDR4:2133MHz/2400MHz/2666MHz/3200MHZ |
|
CPU model: |
i7-10750H / i5-10850H / i9-9880H / i7-9750H / i7-8750H ect. |
Memory slot: |
2*DDR4 S0-DIMM up to 64GB |
||
|
Video card: |
Intel® UHD Graphics Support for 3-explicit GTX1650 / 4G / RTX2060 6G |
||||
|

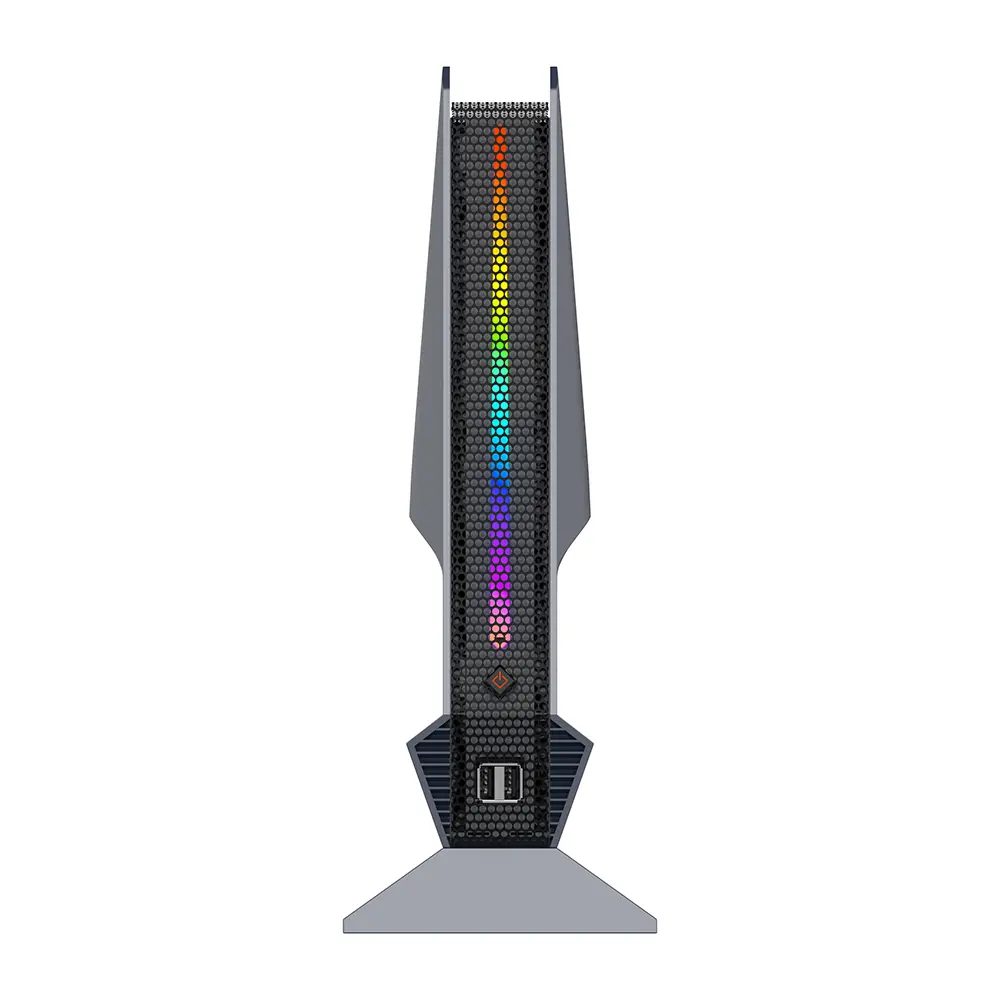

Front panel |
Boot button: |
1*Power button |
Extended slot |
WiFi slot: |
1*M. 22230 slot (WIFI / BT support) WIFI: 802.11 b / g / n / AC / AX Bluetooth 4.0 or above |
|
USB joggle: |
2*USB2. |
SSD slot: |
1*M. 2 2280 slot (SATA / NVME Gen3X4 support) 1*M. 2 2280 slot (SATA or NVME) |
||
|

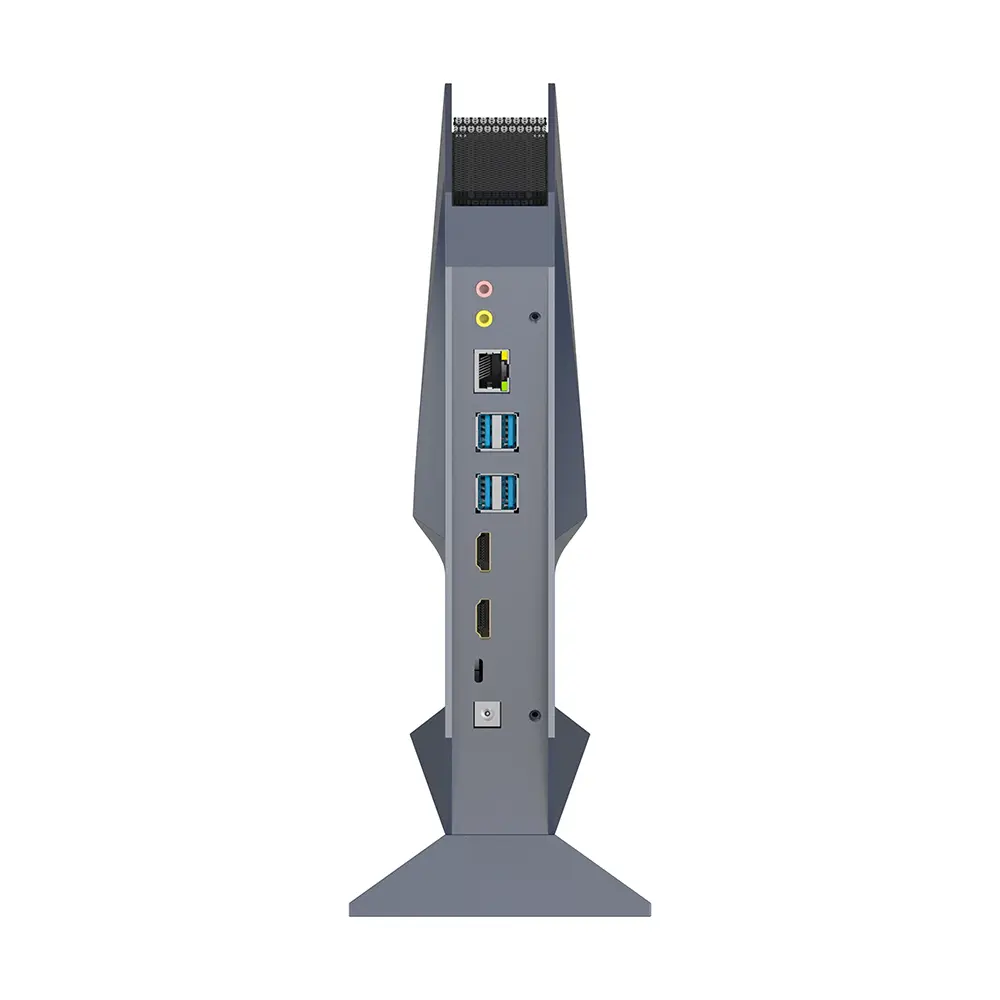

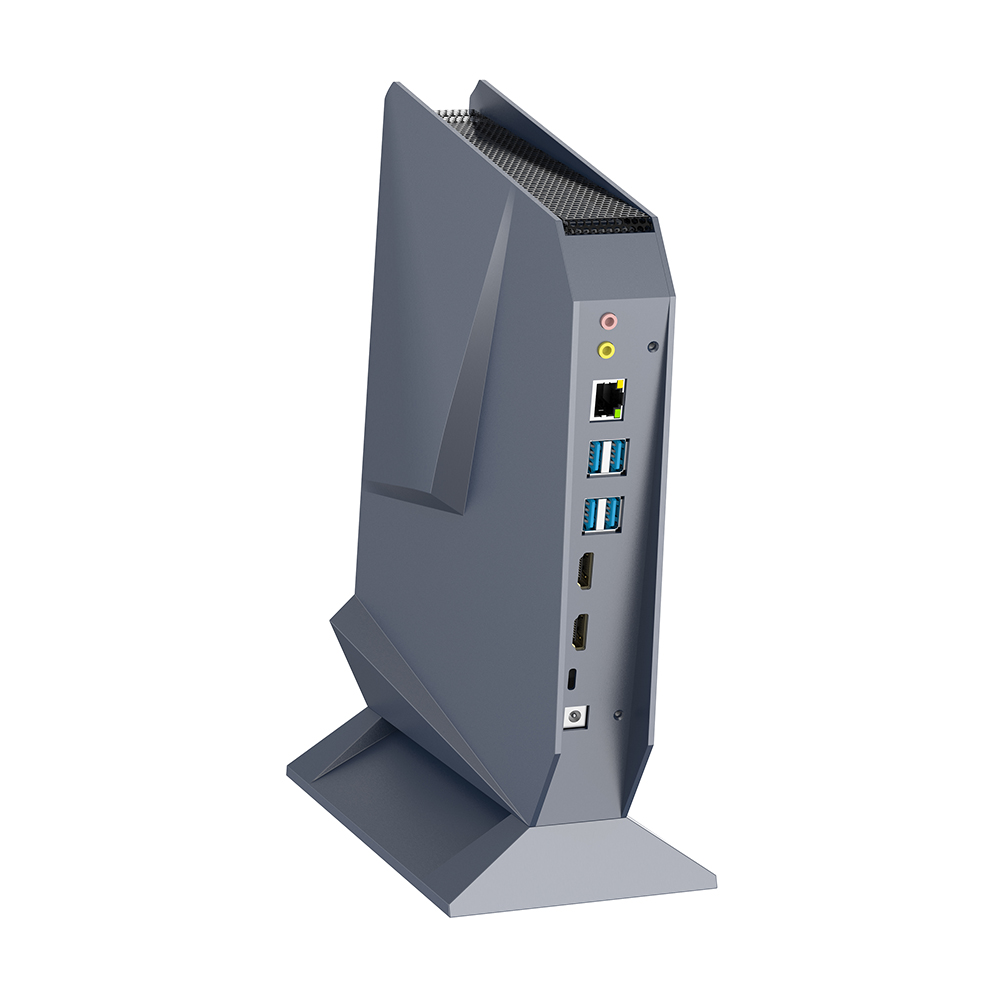

Back panel |
Power port: |
1*DC Jack 5.5*2.5mm(12-19V) |
HDD: |
1*SATA HDD 2.5inch (optional) |
|
|
Network interface: |
1*RJ45 1000M |
Appearance size: |
303 * 263 * 63mm (base 110mm) |
||
|
Displays the interface: |
1*HDMI 0ut 1.4 4K 30HZ 1*HDMI 0ut 2.0 4K 60HZ 1*Type-C 4K 60HZ |
Ontology weight: |
About 1300g |
||
|
USB joggle: |
4*USB3.2 Gen1 |
Adapter: |
19V 150W |
||
|
Audio interface: |
1*3.5mm earphone / 1*3.5mm MIC in |
BIOS support: |
AMI UEFI BI0S, Support for PXE, WOL |
||
|
Work environment: |
Temperature: 0~50℃ Humidity: 5%95% |
Storage environment: |
Temperature: -20~70℃ Humidity: 5%~95% |
||
Desktop-level independent graphics card embedded
Desktop-level independent graphics card embedded: Mini PC realizes ray tracing for the first time
Technological breakthroughs:
Graphics card directly connected to CPU PCIe 3.0x8 channel, latency reduced to 1.2μs.
Scene adaptation:
4K film and television special effects production (Blender Cycles rendering time shortened by 37%).
Dual-mode storage matrix: NVMe+HDD hybrid architecture
Storage innovation:
2.5-inch HDD anti-vibration bracket (50G impact protection), supports 18TB mechanical disk.
Scene adaptation:
UAV mapping data cold backup (-20℃ environment direct reading).
Three-screen 4K output + Type-C direct connection: multi-dimensional productivity of mini PC
Display engine:
Supports 10-bit color depth and HDR400 certification, Delta E＜2.
Scene adaptation:
Medical imaging consultation (CT/MRI/PET three-modality synchronous display).
Industrial-grade heat dissipation and expansion capabilities
Structural design:
Removable dustproof net (IP5X certification), supports -20℃ cold start.
Enterprise-level features:
Dual Gigabit network port aggregation (expansion module required) to achieve 2Gbps transmission.
Industry scenario solutions
1. Compact design workstation
Type-C directly connects to Wacom Cintiq Pro digital screen, with a delay of <8ms.
2. Smart retail digital signage
2.5-inch HDD stores 100,000 hours of advertising materials and supports hot-swap replacement.
3. Industrial machine vision
Wide temperature operation ensures the stability of high temperature and high humidity environment in food workshops.
OEM/ODM customization service
1.Hardware deep transformation:
Extended PoE+ network port power supply industrial camera cluster.
2.Enterprise-level management suite:
Remote KVM over IP out-of-band management.
3.Strict certification guarantee:
EN 55032 Class A electromagnetic compatibility certification.
