Low-power Micro Mini PC BQM2 With DP HDMI
Product Detailed Specification
| Processor specifications | CPU: | Intel Comet Lake-U 15W Core i7-10510U / i5-10210U / i3-10110U 5205U | Internal storage | Memory type: | DDR4 2133MHz/2400MHz/2666MHz |
| video card: | Intel® UHD Graphics | Memory slot: | 2*DDR4 S0-DIMM | ||

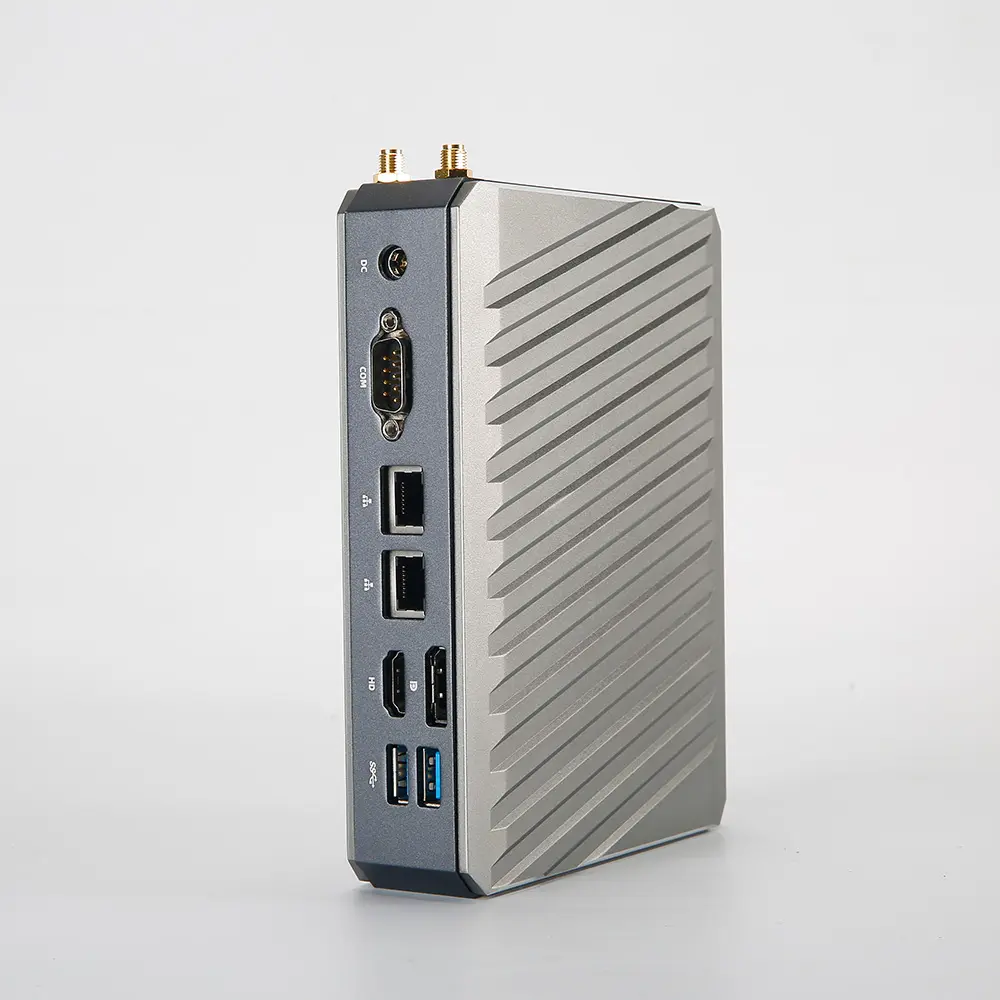

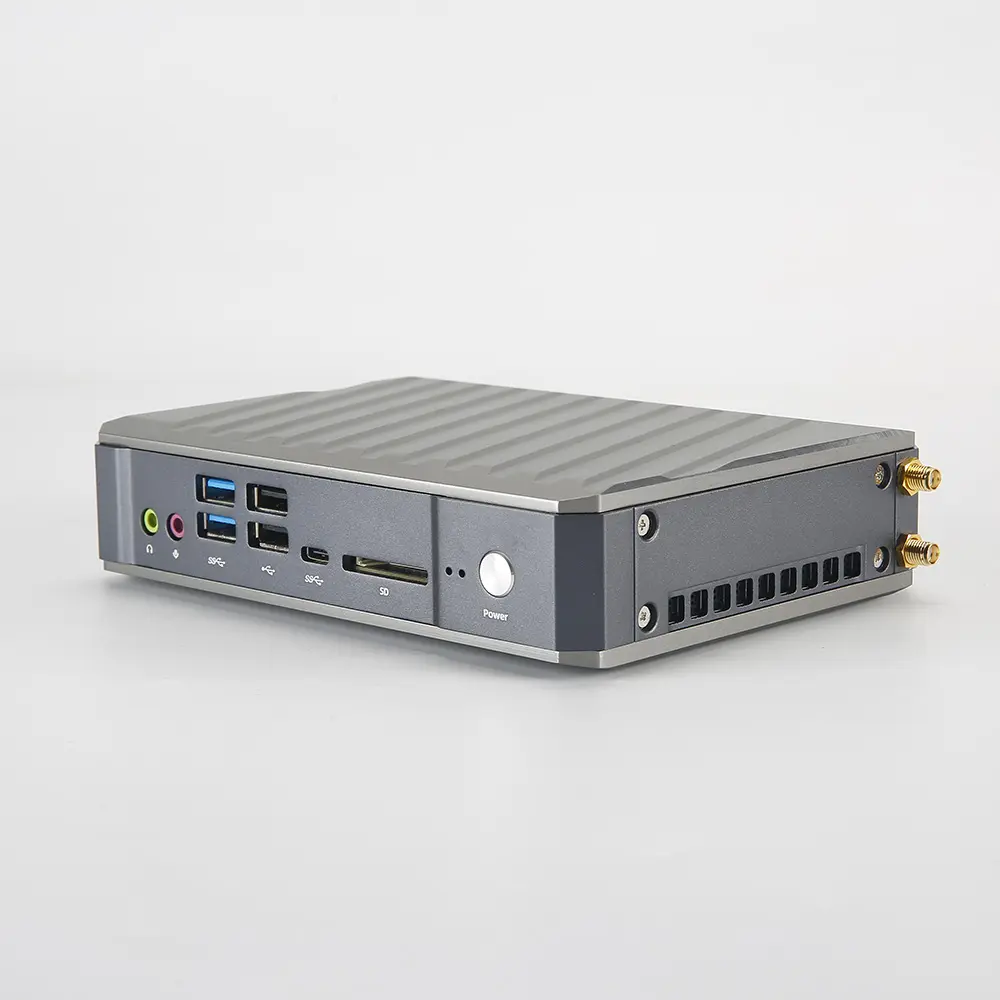

| Front panel | Power-on key / indicator light: | 1*Power-on button 1*Power LED 1*HDD LED | Back panel | Power port: | 1*DC Jack 5.5*2.5mm(12-19V) |
| SD Card: | 1*SD Card | network interface: | 2*RJ45 1000M | ||
| USB joggle: | 2*USB3.0 2*USB2.0 | Displays the interface: | 1*HDMI 0ut 2.0 / 1*DP 1.2 | ||
| Type-C: | 1*Type-C | USB joggle: | 2*USB3.0 | ||
| Audio interface: | 1*3.5mm earphone / 1*3.5mm MIC in | COM mouth: | 1*RS232 DB9 | ||
| Extended slot | WiFi slot: | 1 *M. 2 2230 slot (WIFI / BT support) WIFI: 802.11 b / g / n / AC / AX Bluetooth 4.0 or above |
Other parameters | Appearance size: | 168.4*128.4*40mm |
| SSD slot: | 1*M. 2 2280 slot (SATA / NVME Gen3 X4) | Ontology weight: | About 870g | ||
| HDD: | 1*SATA HDD 2.5inch (optional) | Power adapter: | 12V-19V 40W | ||
| B10S support: | AMI UEFI BI0S, Support for PXE, WOL | ||||
| Work environment: | Temperature: 0~50℃ Humidity: 5%~95% | Storage environment: | Temperature: -20~70℃ Humidity: 5%~95% | ||
Dual-channel DDR4 architecture
Dual-channel DDR4 architecture: the golden balance of performance and expansion
Equipped with Intel's 10th-generation Core i7-10510U to Celeron 5205U processors (4 cores and 8 threads, 15W TDP), with dual DDR4 SO-DIMM slots (supporting up to 64GB 2666MHz memory), data throughput efficiency is increased by 73% compared to single-channel.
Energy efficiency optimization: Dynamic voltage frequency scaling (DVFS) technology, power consumption fluctuations under multi-task loads are controlled within ±5%
Actual performance:
CPU occupancy ≤ 42% when running OPC UA server + SQLite database + 4-channel video stream decoding at the same time
Intel UHD Graphics supports three-screen display (HDMI 2.0 + DP 1.2 + Type-C DP Alt Mode), 4K60Hz output delay < 5ms
Full-Protocol Type-C + Industrial-Grade Interface Matrix
Intelligent interconnection hub:
Type-C interface supports USB3.1 Gen2 (10Gbps) + DP1.4 + PD 3.0 power supply three-in-one, one-line direct connection touch screen and mobile device

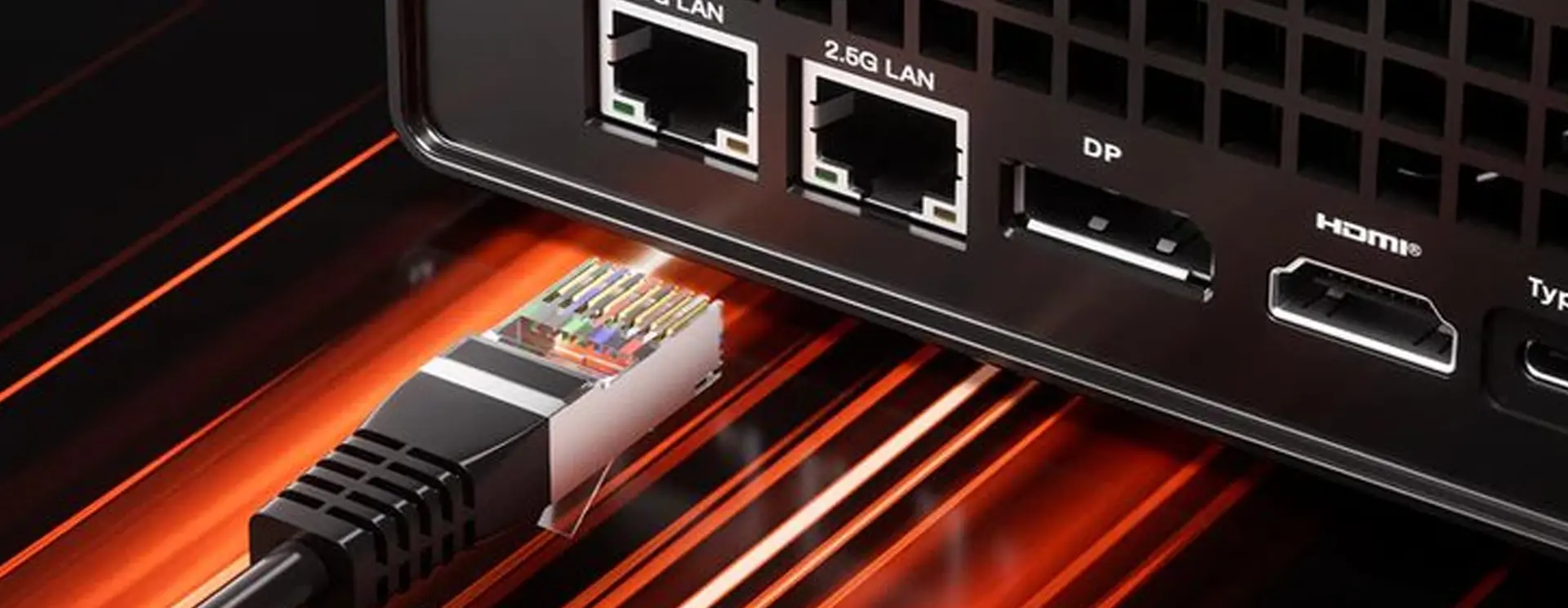

Dual Gigabit Ethernet ports support link aggregation (802.3ad), bandwidth peak reaches 2Gbps, ensuring zero packet loss of industrial camera data
Traditional equipment compatibility:
RS232 DB9 serial port built-in ±15kV ESD protection, baud rate adaptation (0~921.6kbps), direct connection to PLC/CNC equipment
Dual USB3.0+dual USB2.0+SD card slot builds a parallel read and write environment for five devices
Modular storage and wireless expansion capabilities
Storage solution:
M.2 2280 slot (NVMe Gen3x4) sequential read and write up to 3500/3000MB/s, hot-swappable
Optional 2.5-inch shockproof HDD (passed 5Grms vibration test), maximum 16TB cold data storage
Wireless ecology:
M.2 2230 slot can expand WiFi 6E (6GHz band) or Bluetooth 5.2 module (transmission distance up to 30 meters)
Support LoRaWAN gateway deployment (external antenna kit required)
Military-grade compact structure design
Mechanical engineering: 168.4×128.4×40mm all-aluminum body (870g), IP43 protection level

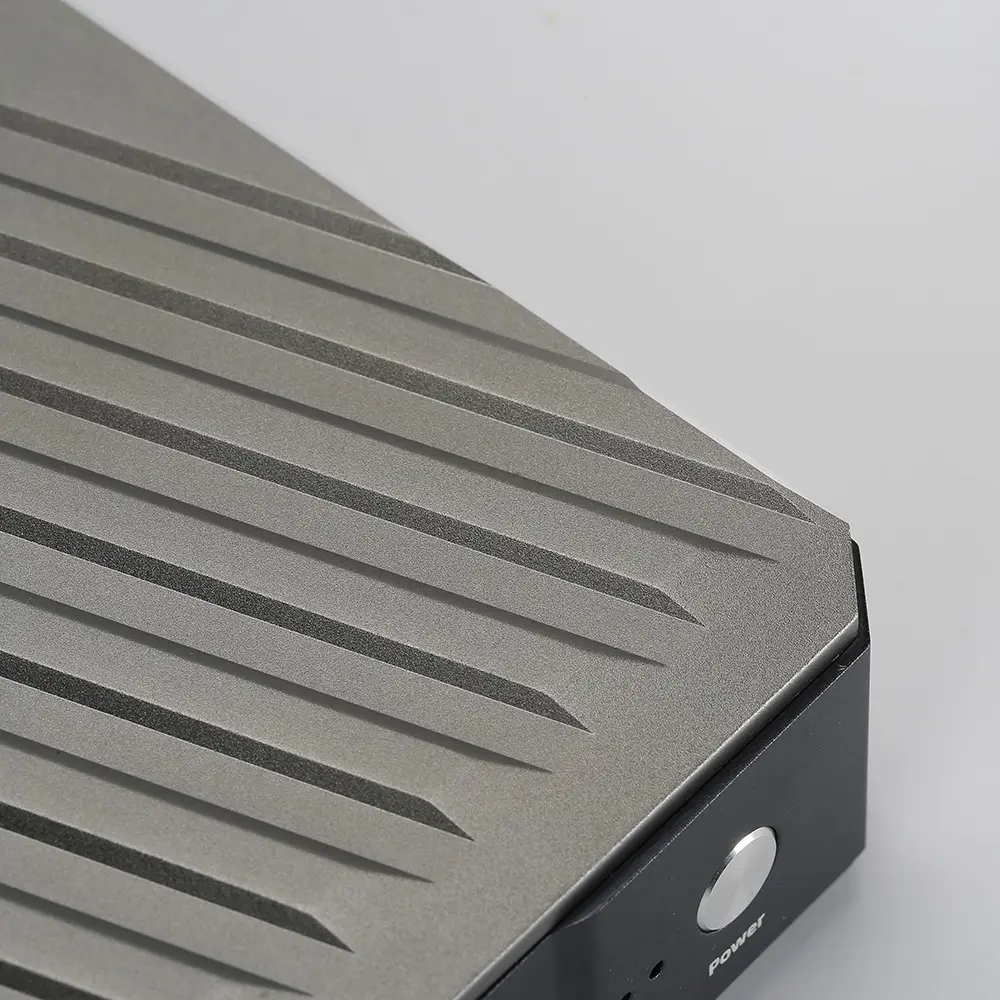

Fanless honeycomb heat dissipation structure, continuous full-load operation at 50℃ ambient temperature

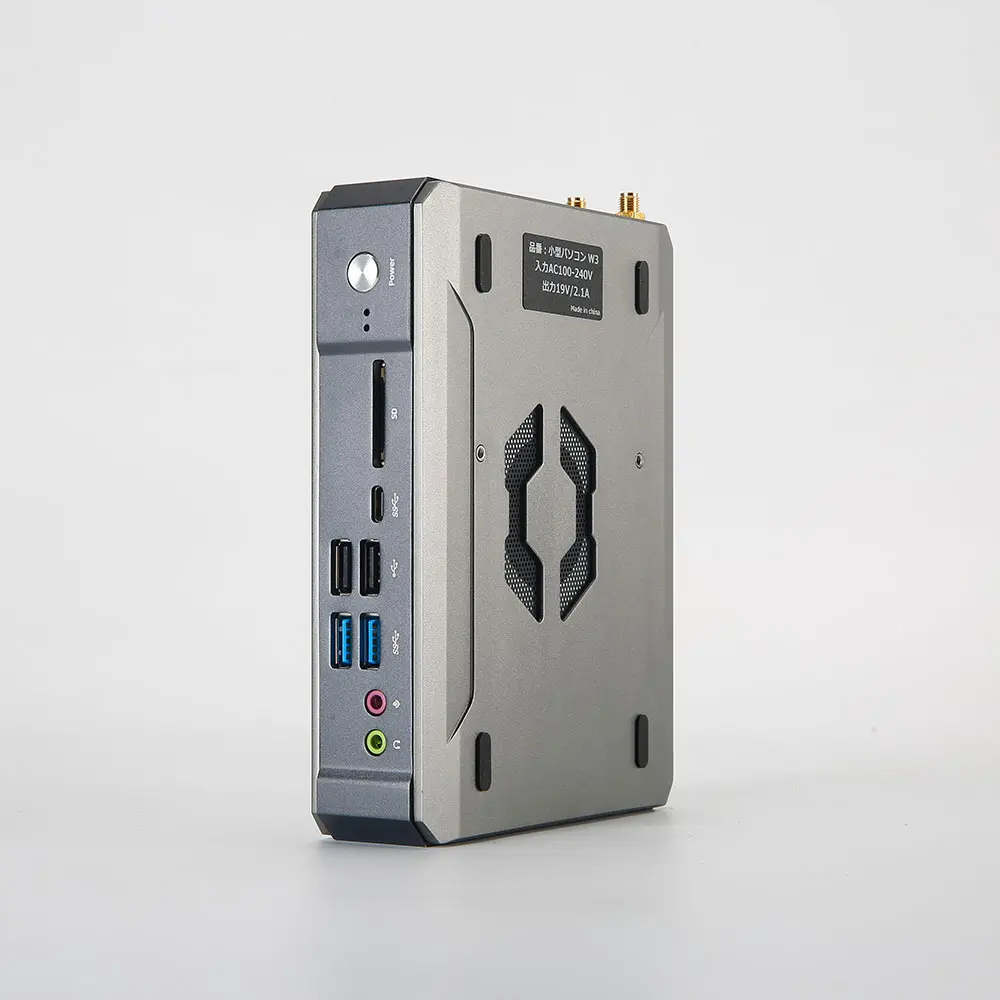

VESA wall-mounted/desktop vertical dual installation mode, seismic performance up to 7Grms (IEC 60068-2-64 standard)
Power management:
12-19V wide voltage input (compatible with vehicle power supply), 40W ultra-low power consumption
Support network wake-up (WOL) and scheduled task power on and off (±30 seconds/year accuracy)
Industry scenario solutions of mini pc
Smart retail terminal
Dual-screen display (main screen product display + secondary screen POS system), Type-C direct connection electronic price tag
SD card slot quickly deploys promotional content, supports daily scheduled automatic updates
Medical imaging workstation
DP+HDMI dual 4K output, DICOM mode color calibration, matching medical monitors
Antibacterial coating shell (optional) + isolated USB interface to prevent cross infection
Rail transit control
-40℃ wide temperature kit (optional) to ensure operation in extreme environments
RS232 direct signal control system, MTBF＞100,000 hours
Smart retail terminal
Dual-screen display (main screen product display + secondary screen POS system), Type-C direct connection electronic price tag
SD card slot quickly deploys promotional content, supports daily scheduled automatic updates
OEM/ODM Mini PC customization service
Hardware deep customization:
BIOS-level GPIO function definition (programmable input/output)
Extended CAN bus/4G module/POE+ power supply interface
Enterprise-level management solution:
Support Intel vPro remote operation and maintenance, fault diagnosis response <10 minutes
Dual BIOS redundant design, firmware upgrade without power failure
Strict certification guarantee:
Passed EN 50155 rail transit certification and IEC 60601-1 medical safety regulations
Operating temperature 0~50℃ (expandable -40~85℃ industrial version)
