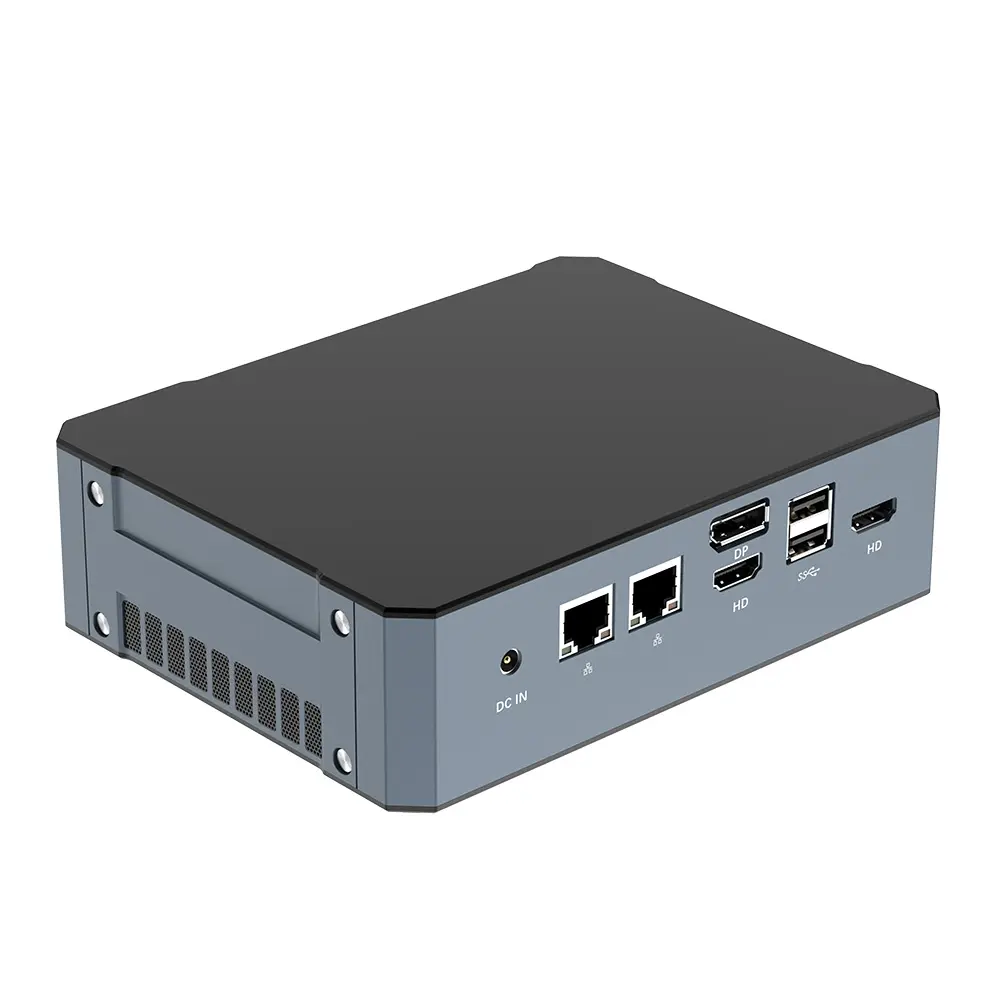

Support 2 * DDR4 Intel 13 CPU Mini PC GM3

Processor specifications

CPU:

Intel i7-1270P / i7-1280-P 1340P 1360P ect. TDP: 28W Intel i7-12700H / i7-12900H 13700H 13900H ect. TDP: 45W

Internal storage

Memory type:

DDR 4  2133 MHz / 2400 MHz / 2666 MHz / 3200 MHZ or 2 * DDR5 4800Mhz / 5200 Mhz

CPU terrace:

Intel 12 Generation of 13TH  CPU

Memory slot:

2*DDR4 S0-DIMM up to 64GB or 2*DDR5 S0-DIMM up to 96GB

Video card:

Intel® Iris® Xe Graphics Support for 4-display

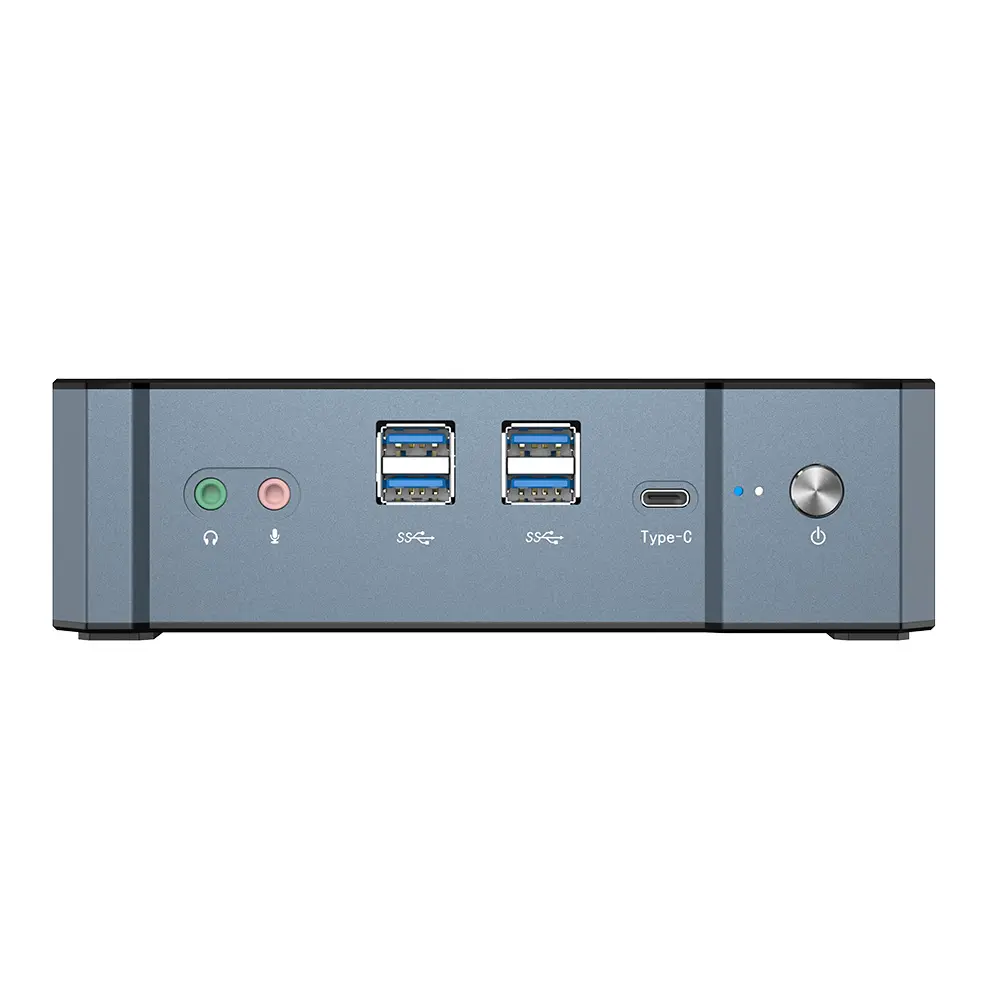

Front panel

Boot button:

1*Power Button

Back panel

Power port:

1*DC Jack 5.5*2.5mm(12-19V)

Thunder and lightning:

1*Thunder bolt4 (compatible with PD power supply)

Network interface:

2*RJ45   2500M

USB joggle:

4*USB3.2 Gen1

Displays the interface:

2*HDMI 0ut 2.04K 60HZ 1*DP 1.4 1*Type-C Thunderbolt 4

Audio interface:

1*3.5mm earphone / 1*3.5mm MIC in

USB joggle:

2*USB2.0

Extended slot

WiFi slot:

1*M. 2 2230 slot (WIFI / BT support) WiFi:802.11 b / g / n / AC / AX Bluetooth 4.0 or above

Other parameters

Appearance size:

174X128X45mm

SSD slot:

1*M. 2 2280 slot (SATA / NVME Gen3 X4 support) 1*M. 2 2280 slot (NVME PCIE GEN4 X4)

Ontology weight:

About 500g

HDD:

1*SATA HDD 2.5inch (optional)

Power adapter:

12V-19V 90W

BIOS support:

AMI UEFI BI0S, Support for PXE, WOL

Work environment

Temperature: 0~50℃ Humidity: 5%~95%

Storage environment

Temperature: -20~70℃ Humidity: 5%~95%
