Support 4 Display Intel 12 Mini Host GP1

Processor specifications

CPU:

Intel i7-1270P / i7-1280-P 1340P 1360P ect.
TDP: 28W
Intel i7-12700H / i7-12900H 13700H 13900H ect.
TDP: 45W



CPU terrace:

Intel 12 Generation of 13 TH CPU



video card:

Intel® / Iris® Xe Graphics Support for 4-display
  • Purchase recommendation XXX
  • Reference Price XXX
Contact us
product details

Product Detailed Specification

Processor specifications

CPU:

Intel i7-1270P / i7-1280-P 1340P 1360P ect. TDP: 28W Intel i7-12700H / i7-12900H 13700H 13900H ect. TDP: 45W

Internal storage

Memory type：

DDR 4  2133 MHz / 2400 MHz / 2666 MHz / 3200 MHZ or 2 * DDR5 4800Mhz / 5200 Mhz

CPU terrace:

Intel 12 Generation of 13 TH CPU

Memory slot：

2*DDR4 S0-DIMM up to 64GB or 2*DDR5 S0-DIMM up to 96GB

video card:

Intel® / Iris® Xe Graphics Support for 4-display

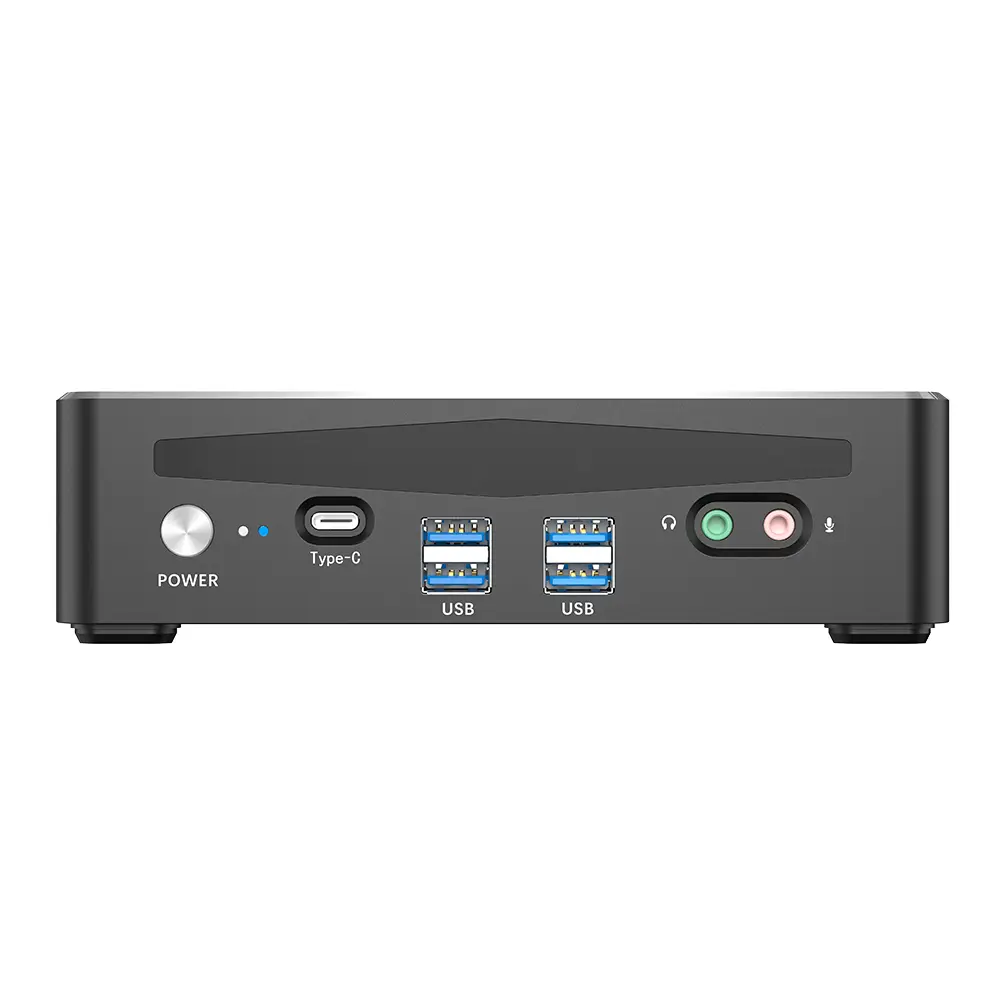

Front panel

Boot button:

1*Power Button

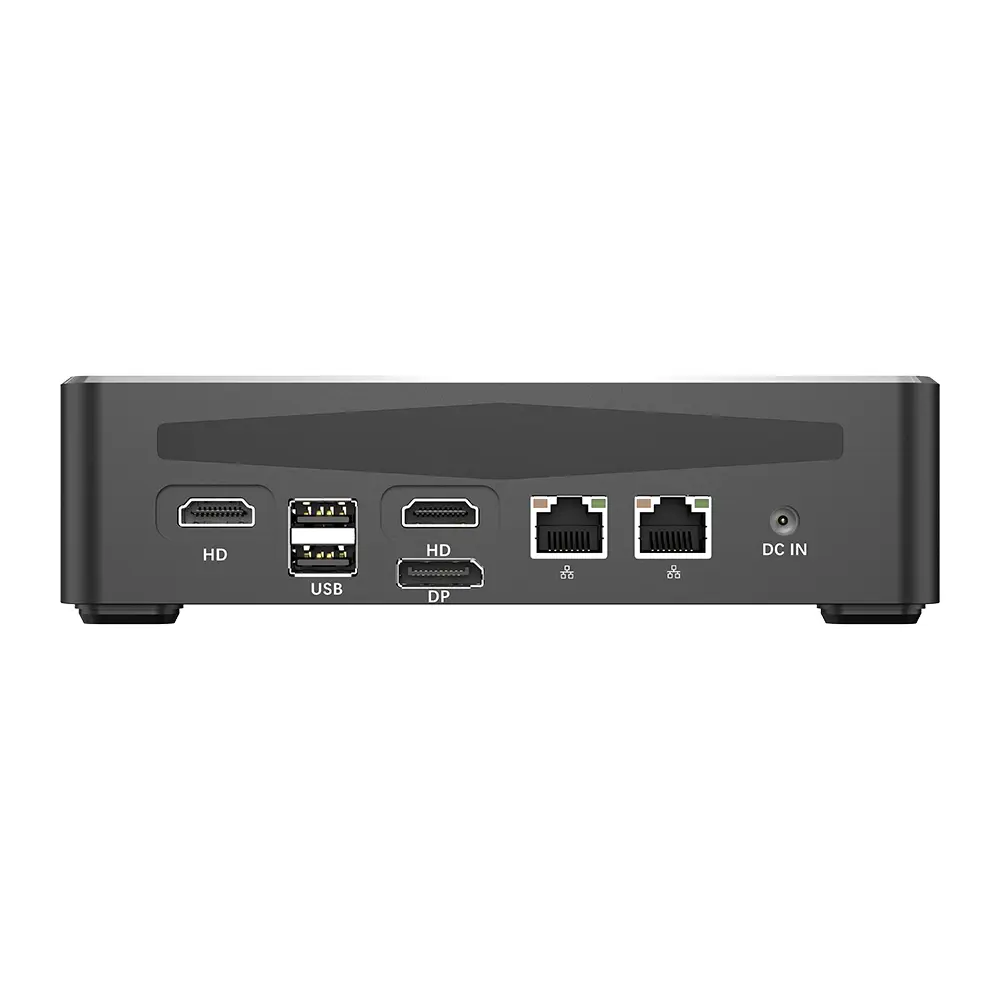

Back panel

Power port：

1*DC Jack 5.5*2.5mm(12-19V)

thunder and lightning:

1*Thunderbolt4 (compatible with PD power supply)

Network interface：

2*RJ45   2500M

USB joggle:

4*USB3.2  Gen1

Displays the interface：

2*HDMI 0ut 2.04K 60HZ 1*DP 1.4 / 1*Type-C Thunderbolt 4

Audio interface:

1*3.5mm earphone / 1*3.5mm MIC in

USB joggle：

2*USB2.0

Extended slot

WiFi slot:

1*M. 2 2230 slot (WIFI / BT support) WiFi:802.11 b / g / n / AC / AX Bluetooth 4.0 or above

Other parameters

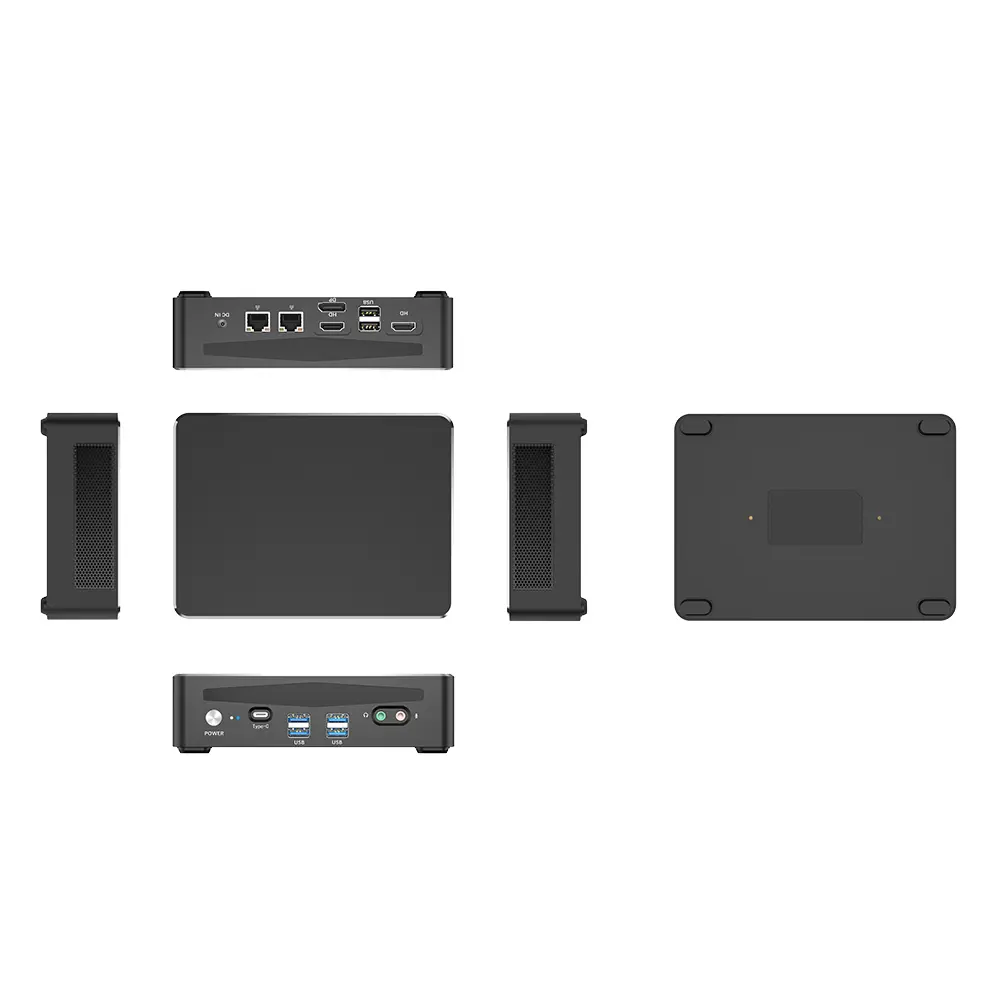

Appearance size：

174X128X45mm

SSD slot:

1*M. 2 2280 slot (SATA / NVME Gen3 X4 support) 1 *M. 22280 slot (NVME PCIE GEN4 X4)

Ontology weight：

About 500g

HDD:

1*SATA HDD 2.5inch (optional)

Power adapter：

12V-19V 90W

BIOS support：

AMI UEFI BI0S, Support for PXE, WOL

Work environment：

Temperature: 0~50℃ Humidity: 5%~95%

Storage environment：

Temperature: -20~70℃ Humidity: 5%~95%

Desktop-level independent graphics card embedded

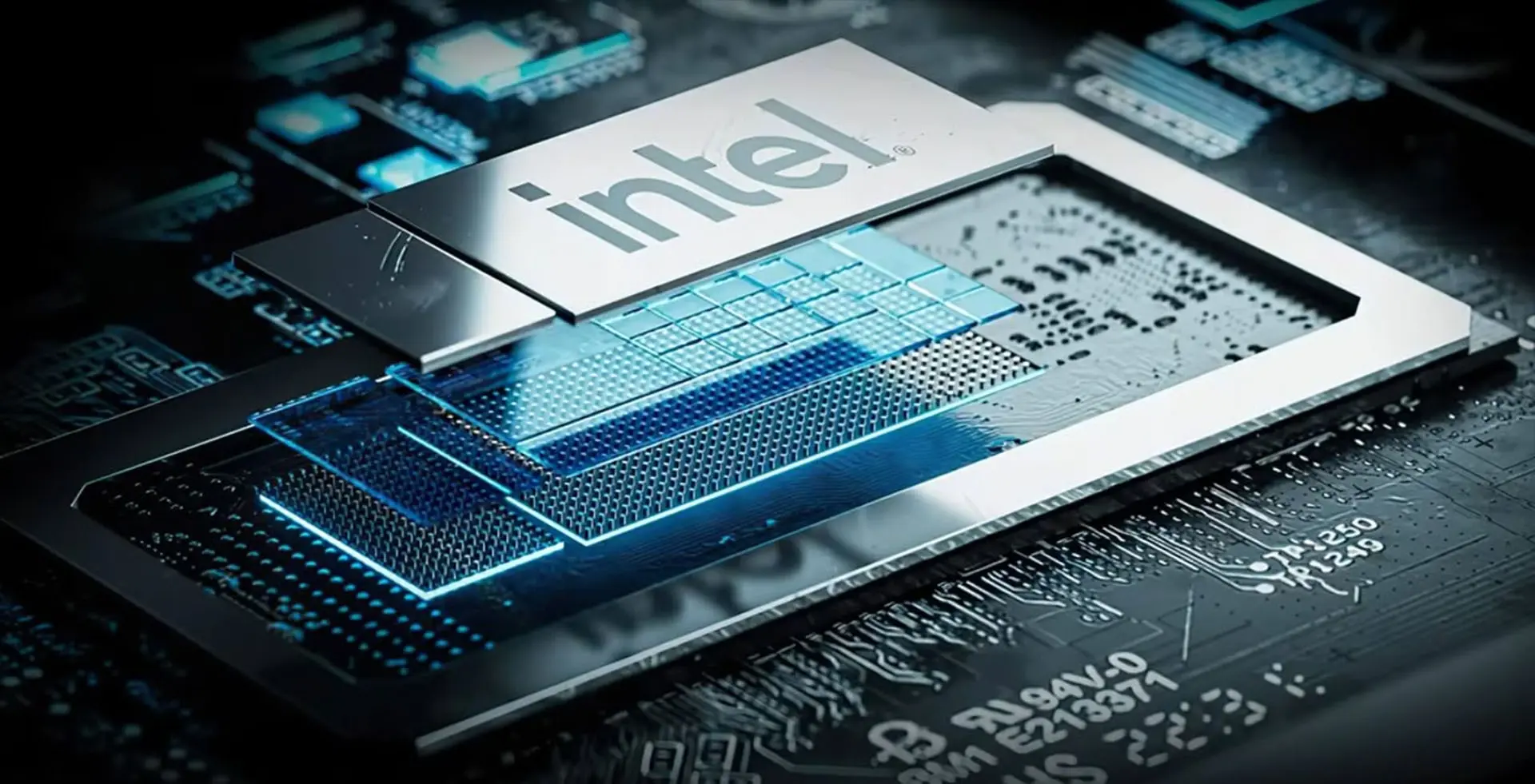

1. 12th/13th generation Core H series processors: desktop-level performance in mini host

Equipped with Intel i7-12700H to i9-13900H processors (14 cores and 20 threads, 45W TDP), using Intel 7 process and hybrid architecture design, multi-core performance is 63% higher than the previous generation mini host.

Performance test:

Cinebench R23 multi-core score of 28,450 points, surpassing most desktop i7-11700K.

Supports PCIe 5.0 channel, NVMe Gen4 SSD sequential read and write up to 7,400/6,800MB/s.

Cooling revolution: vacuum chamber heat sink + liquid metal heat conduction, core temperature ≤75℃ (noise <32dB) when running at full load.

Scene adaptation:

4K video editing (Premiere Pro real-time rendering).

Quantitative financial high-frequency trading (multi-threaded backtesting efficiency increased by 55%).

Scientific research simulation calculation (ANSYS Fluent operation speed increased by 40%).

2Four-screen 8K output + Thunderbolt 4: multi-dimensional productivity of mini host

Display matrix:

Dual HDMI 2.0 (4K@60Hz) + DP1.4 (8K@30Hz) + Thunderbolt 4 (8K dual-screen expansion).

Supports HDR10 and 10-bit color depth, covering 100% Adobe RGB color gamut.

Connection revolution:

Thunderbolt 4 (40Gbps) directly connects to an external graphics dock (RTX 4090) or 8K capture card.

Dual 2.5G network ports support link aggregation (5Gbps), meeting NAS multi-user concurrent access.

Scene adaptation:

Esports live streaming (OBS four-screen monitoring + capture card input).

Architectural design multi-screen collaboration (CAD+renderer+material library synchronous operation).

Medical imaging consultation (4K DICOM standard three-screen comparison).
Support 4 Display Intel 12 Mini Host GP1 (2)

Dual-channel DDR5-5200 memory: mini host's data torrent engine

96GB DDR5 memory capacity (50% increase over the previous generation mini host), supports XMP 3.0 overclocking:

Memory bandwidth reaches 83.2GB/s, and the number of concurrent virtual machines increases by 3 times.

Error correction mode (ECC) is optional to ensure zero error in financial database operations.

Innovative design:

Memory slots are laid out in a sunken layout, compatible with 34mm high heat dissipation vest strips.

Intelligent power consumption management (1.1V ultra-low voltage mode).

Scene adaptation:

Film and television special effects particle simulation (Houdini memory usage is optimized by 37%).

Large 3D point cloud processing (processing 28 million data points per second).

Blockchain node server (parallel verification efficiency increased by 68%).

Modular dual storage architecture: mini host's ultra-fast response solution

Storage configuration:

Dual M.2 slots (PCIe Gen4x4 + Gen3x4), RAID 0 mode reads over 14GB/s.

Optional 2.5-inch HDD cold storage (20TB capacity, 32MB cache).

Expansion capability:

M.2 2230 slot can expand WiFi 6E (6GHz band) or 5G module (Sub-6GHz).

Front USB3.2 Gen2x2 (20Gbps) directly connected to high-speed mobile hard disk.

Scenario adaptation:

8K RAW video real-time editing (dual SSD material pool + proxy workflow).

Edge AI reasoning (TensorRT model loading time is shortened to 0.8 seconds).

Mobile mapping workstation (5G module realizes real-time point cloud upload).
Support 4 Display Intel 12 Mini Host GP1 (1)

Industry scenario solution

1.Compact design laboratory

174×128×45mm body (500g) can be embedded in the experimental cabinet, replacing the traditional tower host.

Wide temperature kit (-20℃ start) adapted to outdoor vehicle research platform.

2.Digital twin control center

Four-screen output industrial simulation interface, Thunderbolt 4 direct connection PLC debugger.

Dual network ports realize OT/network isolation to ensure the safety of production system.

3.Cloud game micro server

Virtualization technology supports 8 cloud terminals concurrently, GeForce NOW streaming delay <15ms.

90W PD power supply is compatible with GaN chargers, making mobile gaming cars plug and play.
