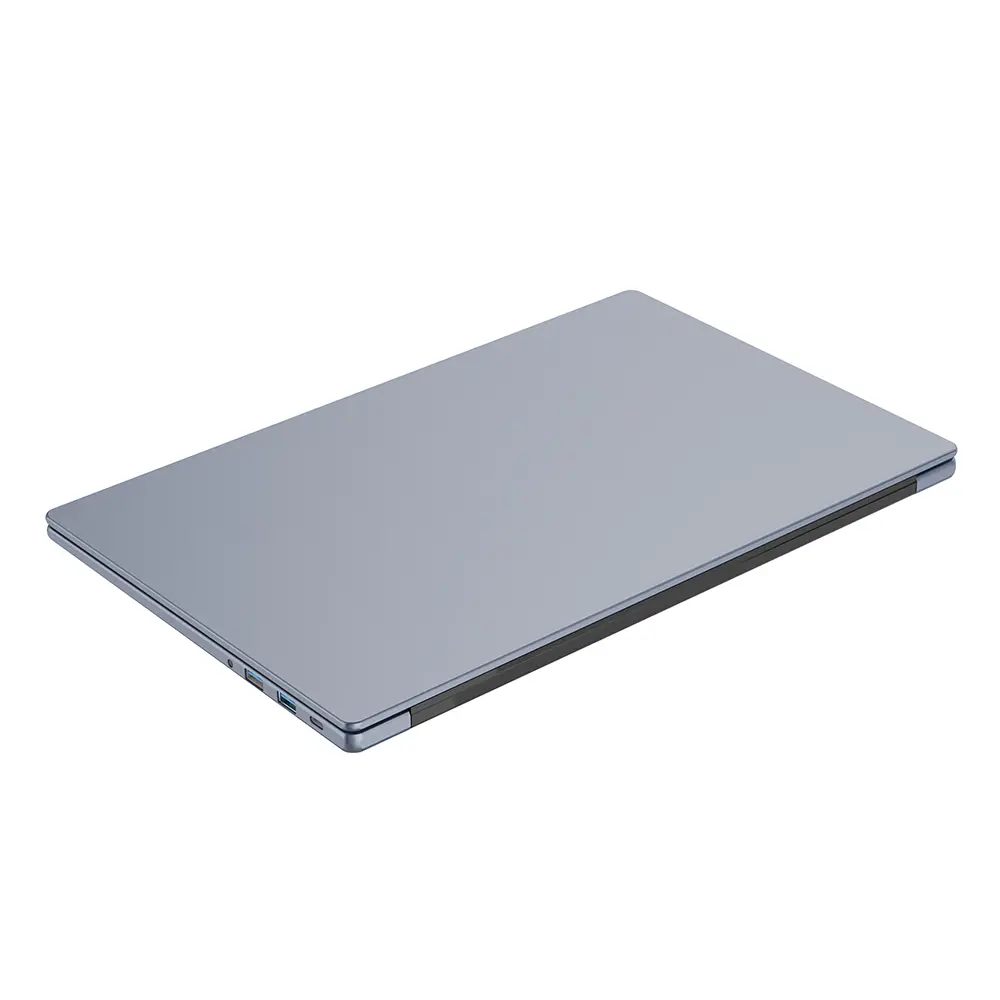

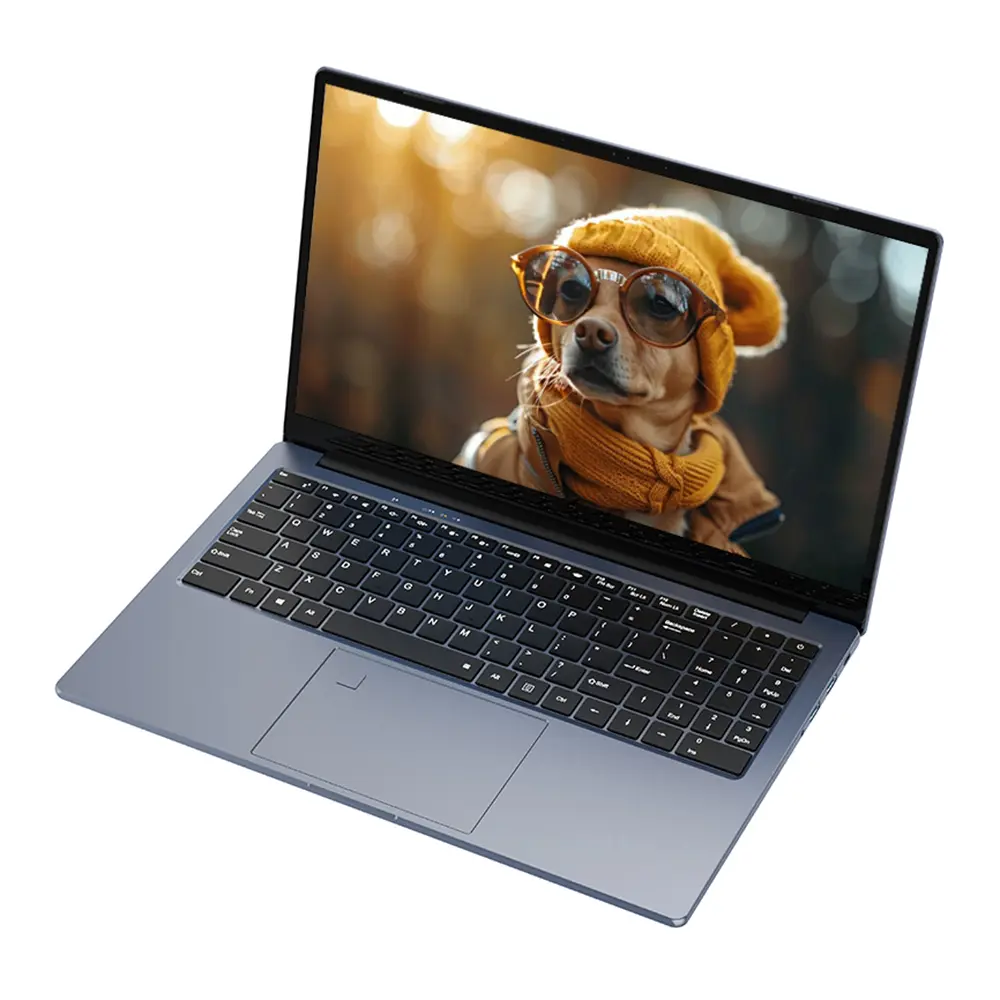

Supports 2*DDR4 High-end Business study Laptop NB02
Product Detailed Specification
|
Basic specifications |
Product Model: |
NB02 |
|
Product Appearance: |
Metal ash aluminum alloy |
|
|
Resolution Ratio: |
1920*1080 |
|
|
Dimension Scale: |
15.6-inch / 16:9 |
|
|
Weight: |
About 2KG |
|
|
Hardware configuration |
Cpu: |
i7-9750H,i9-9880H,i9-10885H,i7-10750H |
|
Internal Storage: |
2*DDR4 S0-DIMM DDR4 2133MHz/2400MHz/2666MHz |
|
|
Caliche: |
1*M.2 2280 slot (SATA / NVME Gen3 X4) |
|
|
Wi-Fi: |
1*M.2 2230 slot (WIFI / BT support) WiFi:802.11 b / g / n / AC / AX Bluetooth 4.0 or above |
|
|
Camera: |
1.0 MegaPi xel |
|
|
Suona: |
2 stereo Speakers |
|
|
Microphone: |
one analog microphone |
|
|
Touch Board \ Fingerprint: |
Yes(integrated) |
|
|
Fingerboard: |
Chocolate keyboard+Backlit |
|
|
Hall Switch: |
Support closed breath screen |
|
|
I/0 Configure |
Left interface： |
1* Type-c supports the USB3.0 and DP display |
|
Support RJ45 1000M |
||
|
HDMI1.4 Support 4K 24HZ |
||
|
1*USB3.0 |
||
|
The right interface： |
1 * Type-c supports PD charging, 100W |
|
|
2*USB2.0 |
||
|
φ3.5mm 1 Jack,MIC in/Line out |
||
|
Standard fitting |
Power adapter： |
The PD power supply is above 20V 100W |
|
Battery： |
3Cells 3S1P 11.4V 5800Mah |
|
|
Operating system： |
Support Win10\Win11 |
|
|
Product size： |
361*232*20mm |
|
|
Product weight： |
About 1.88kg |
|
|
Working temperature： |
5~35℃ Humidity: 5%~95% |
|
|
Storage temperature： |
-20~60℃ Humidity: 5%~95% |
9th/10th Generation Core H Series Processors: Desktop-level performance sinks to mobile terminals
Scene verification: 3D rendering task efficiency is 1.8 times faster than the same level low-voltage processor, and supports running Premiere+Visual Studio+20 browser tabs simultaneously without lag.
Dual-protocol Type-C full-scenario interface ecosystem
Right interface: 100W PD Type-C fast charging, 50% charging in 30 minutes (58Wh battery), compatible with mobile phones/tablets and multiple devices.
Business expansion: Retain the RJ45 Gigabit network port to ensure zero packet loss in network conferences, and HDMI 1.4+dual USB3.0+USB2.0 to build a four-screen display workstation.
WiFi 6 dual-band concurrency + Bluetooth 4.2 intelligent scheduling
Bluetooth optimization: Bluetooth 4.2 is equipped with adaptive frequency hopping technology (AFH), and the delay of simultaneous connection of keyboard/mouse/headset is less than 8ms, which effectively avoids interference from the 2.4GHz frequency band in the office.

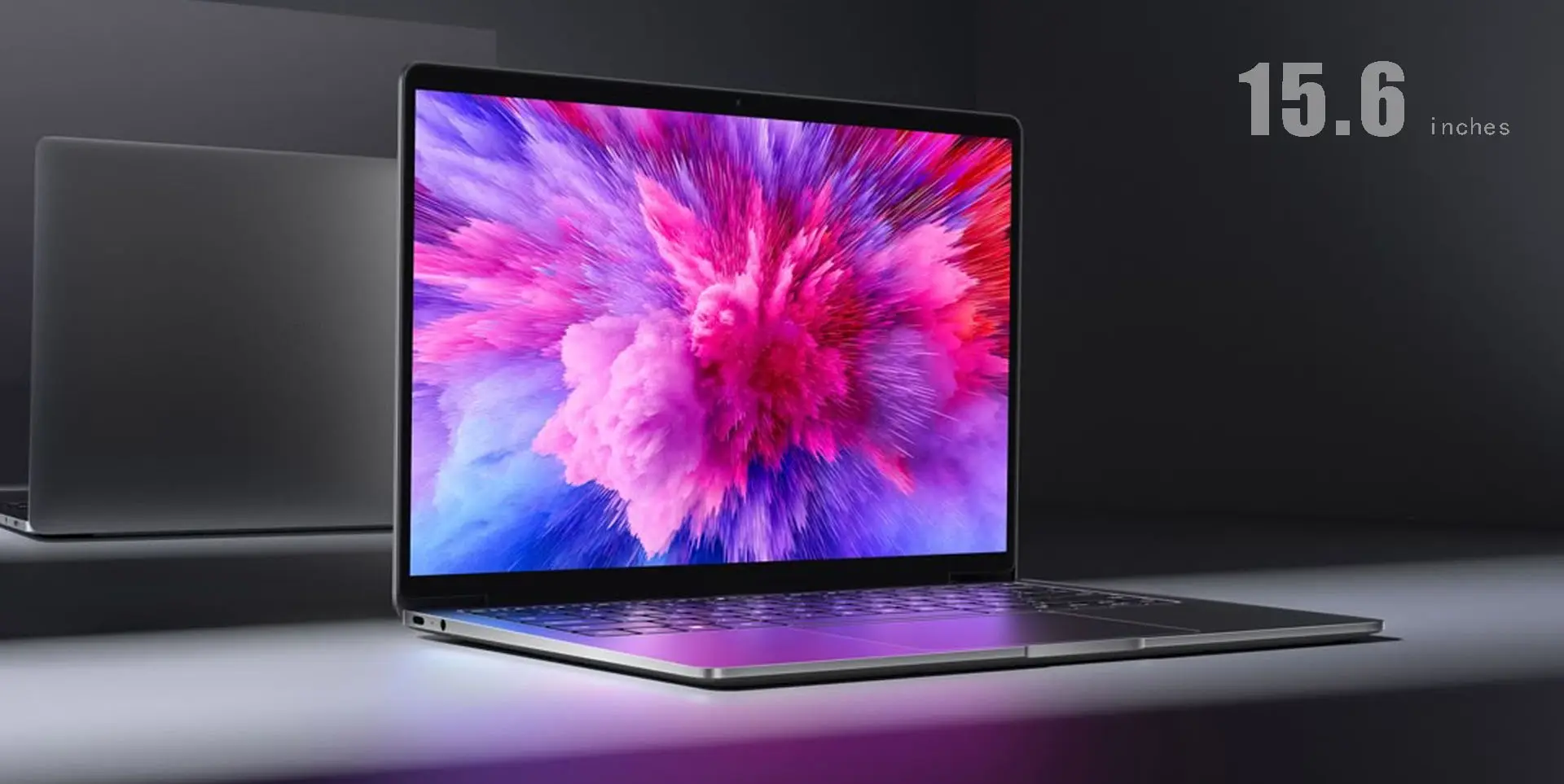

15.6-inch full HD anti-glare screen: dual-optimal solution for business audio and video
Immersive experience: Dual stereo speakers with Waves MaxxAudio sound algorithm, video conference voice clarity increased by 35%, and movie dynamic range extended to 90dB.

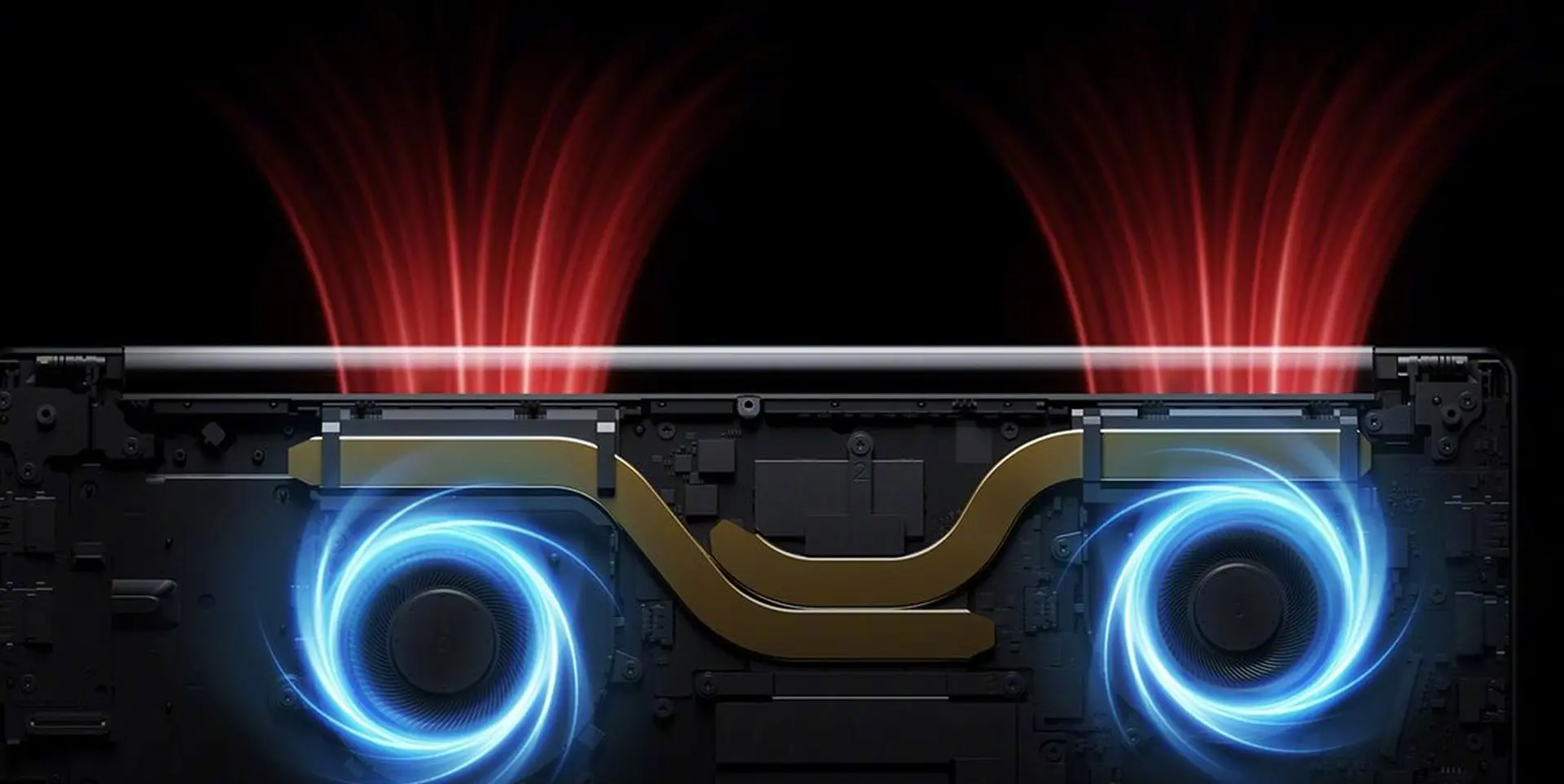

Military-grade heat dissipation and modular design

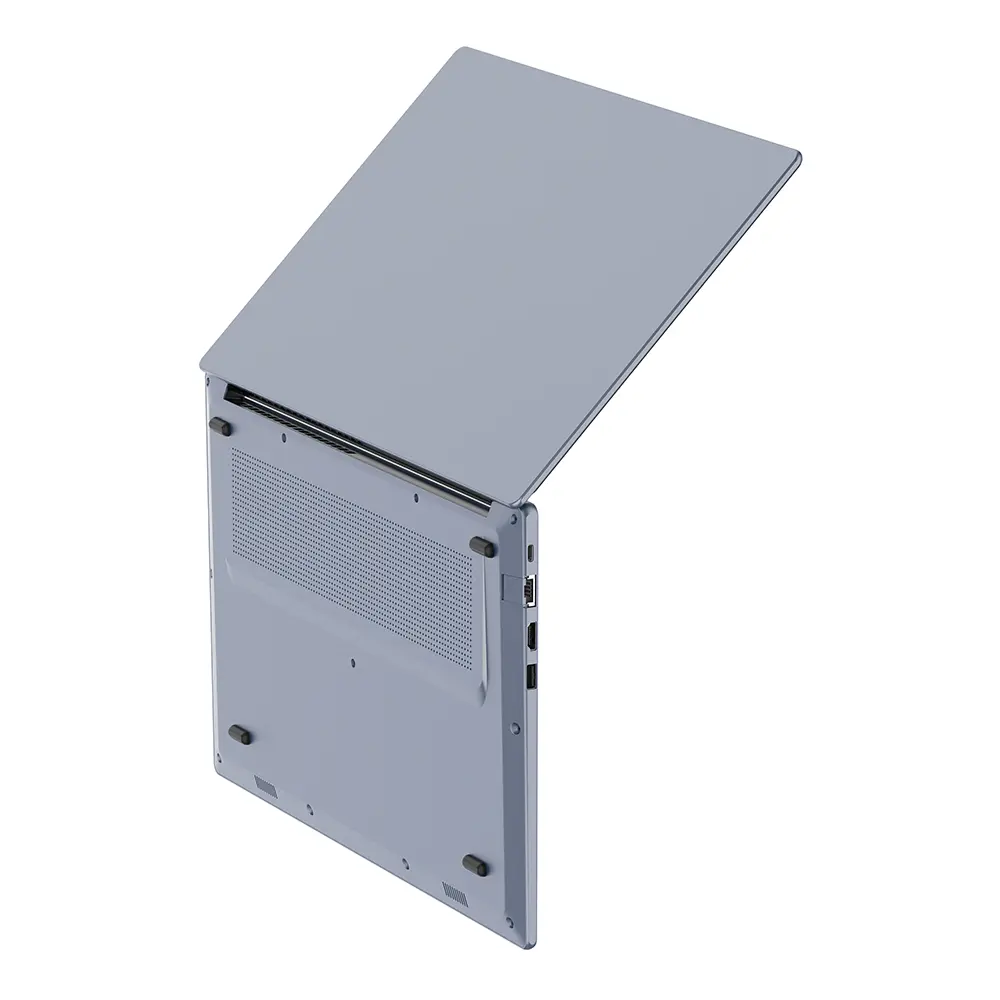

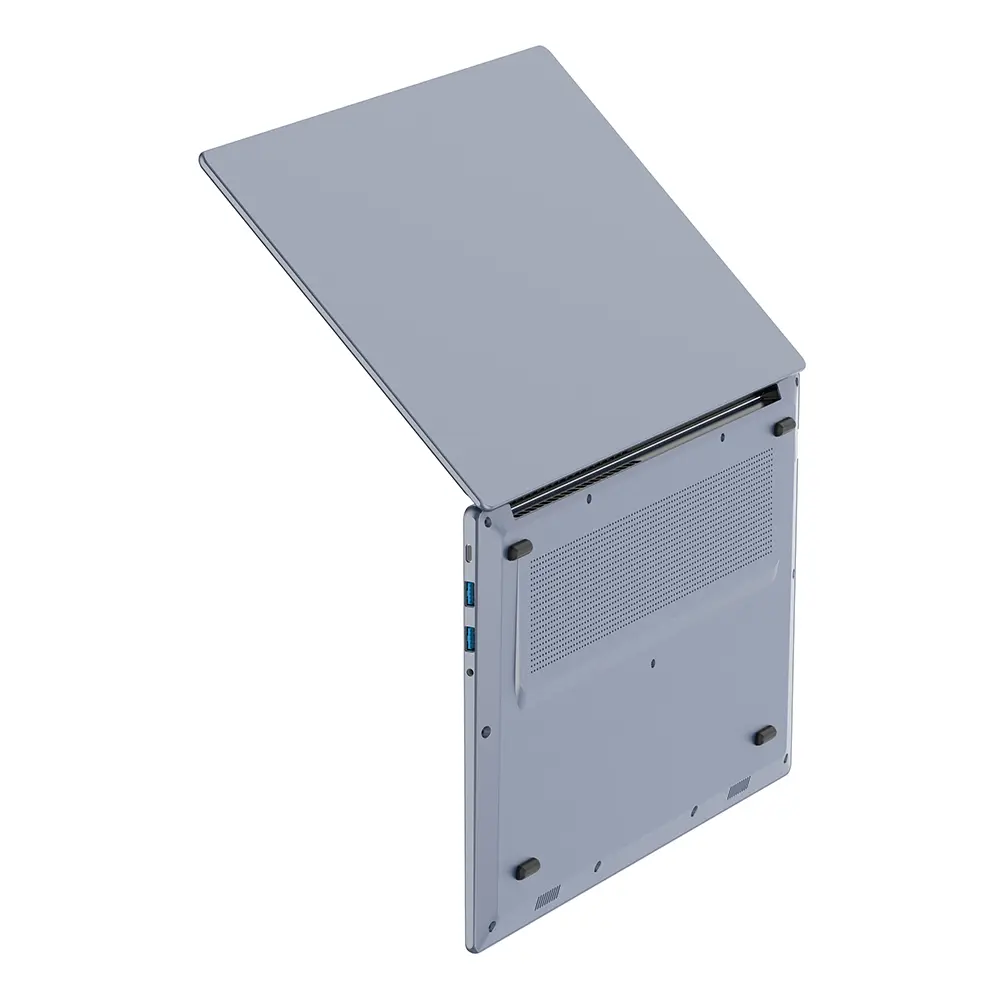

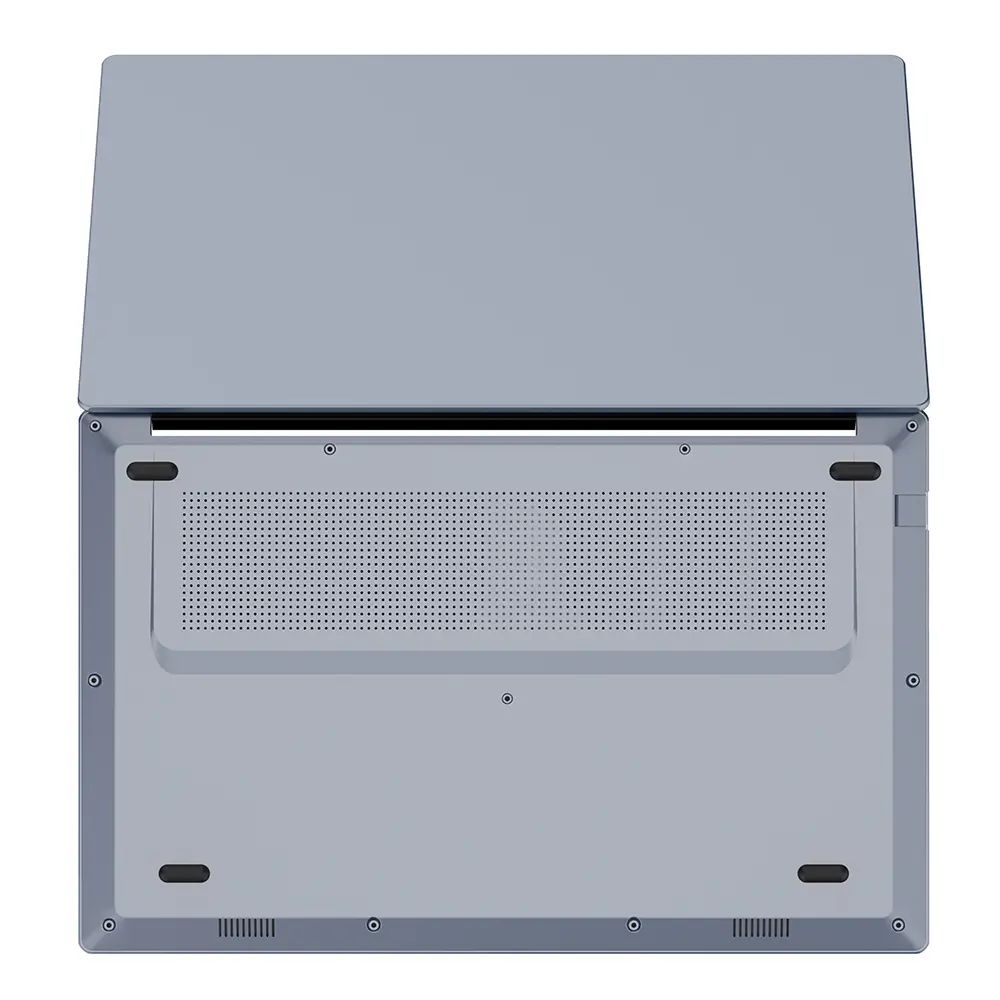

OEM customization: Removable bottom cover design, supports quick memory/SSD upgrade; reserved M.2 2230 slot for expansion of 4G module or second SSD.
OEM laptop differentiated service
1.Hardware flexible configuration
Memory supports up to 64GB DDR4 2666MHz (dual slot non-welded).
Storage supports NVMe/SATA dual-protocol M.2 2280 slot (maximum 2TB)
2.Enterprise-level security solution
Physical camera switch + microphone hardware disable shortcut key.
Optional TPM 2.0 chip to achieve data encryption.
3.Industry scenario adaptation
Industrial version enhancement: passed IP53 dustproof certification and -20℃ cold start test.
Target users and value propositions
Film and television studio: Type-C DP output supports HDR monitoring, and MX150 graphics card accelerates Proxy encoding.
Government units: Domestic modules are compatible.
