01

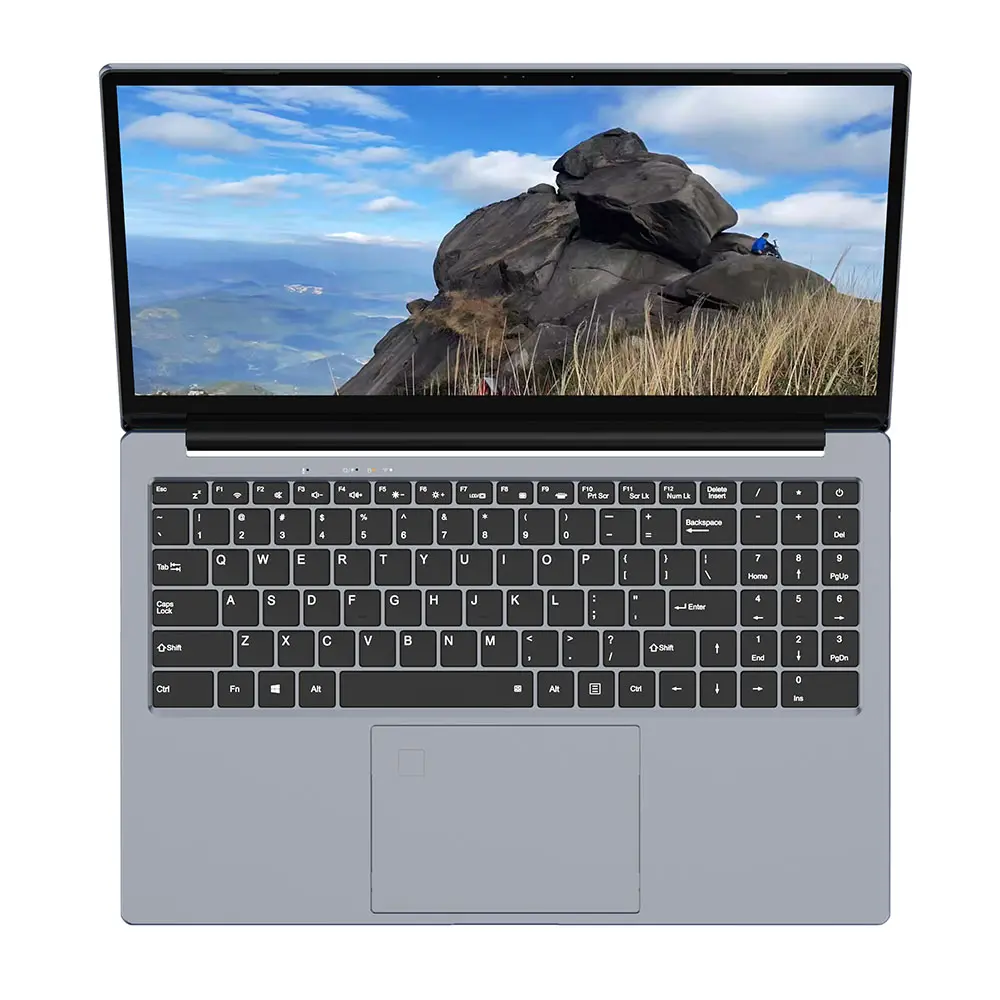

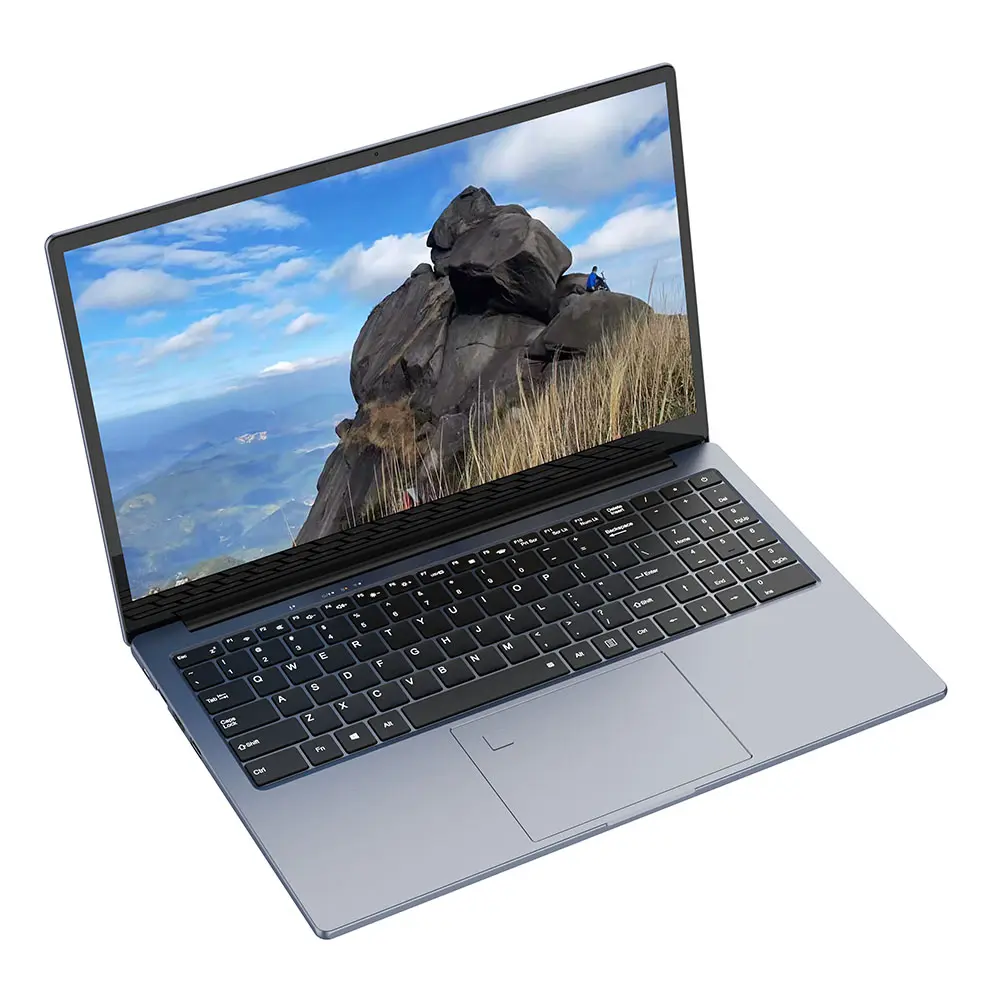

USB3.0 and DP Display Business study Laptop NB01
Product Detailed Specification
|
Basic specifications |
Product Model： |
NB01 |
|
Product Appearance： |
Metal ash aluminum alloy |
|
|
Resolution Ratio： |
1920*1080 |
|
|
Dimension Scale： |
15.6-inch / 16:9 |
|
|
Weight： |
About 2KG |
|
|
Hardware configuration |
Cpu： |
i3-1115G4,i5-1135G,i7-1165G7 |
|
Video Card： |
Intel® Iris® Xe Graphics MX450 2G |
|
|
Internal Storage： |
2*DDR4 S0-DIMM DDR4 2133MHz/2400MHz/2666MHz/3200MHz |
|
|
Caliche： |
1*M.2 2280 slot (SATA / NVME Gen3 X4) |
|
|
Wi-Fi： |
1*M. 2 2230 slot (WIFI / BT support) Wifi:802.11 b / g / n / AC / AX Bluetooth 4.0 or above |
|
|
Camera： |
1.0 MegaPixel |
|
|
Suona： |
2 stereo Speakers |
|
|
Microphone： |
one analog microphone |
|
|
Touch Board \ Fingerprint： |
Yes(integrated) |
|
|
Fingerboard： |
Chocolate keyboard+Backlit |
|
|
Hall Switch： |
Support closed breath screen |
|
|
I/0 Configure |
Left-side interface: |
1 * Type-c supports the USB3.0 and DP display |
|
Support RJ45 1000M |
||
|
HDMI1.4 Support 4K 24HZ |
||
|
1*USB3.0 |
||
|
Right-side interface: |
1 * Type-c supports PD charging, 100W |
|
|
2*USB2.0 |
||
|
φ3.5mm 1 Jack,MIC in/Line out |
||
|
Standard fitting |
Power supply adapter: |
The PD power supply is above 20V 100W |
|
Battry: |
11.4V 3Cells 3S1P 5800mAh |
|
|
Operating system: |
Support Win10\Win11 |
|
|
Product size: |
361*232*20mm |
|
|
Product weight: |
About 1.9kg |
|
|
Working temperature: |
5~35℃ Humidity: 5%~95% |
|
|
Storage temperature: |
-20~60℃ Humidity: 5%~95% |
11th generation Core + MX450 dual-engine architecture: the performance leapfrog among thin and light notebooks
Equipped with Intel's 11th generation Core i3-1115G4 to i7-1165G7 processors (10nm SuperFin process, up to 4.7GHz turbo frequency) and NVIDIA MX450 discrete graphics card (2GB GDDR6, Turing architecture), through Intel Iris Xe core graphics and discrete graphics smart switching technology, the energy efficiency is improved by 37% compared with the same level.
Performance test:
CPU: Cinebench R23 single-core score of 1,485 points, 28% higher than the previous generation, meeting the needs of multiple financial software opening/big data processing
GPU: 3DMark Time Spy graphics card score of 1,850 points, supports Adobe Premiere GPU accelerated rendering, 4K proxy file generation speed increased by 40%
Cooling revolution: Dual ice blade fan + graphene heat sink combination, surface temperature is controlled below 38℃ when running at full load, noise ≤28dB
GPU: 3DMark Time Spy graphics card score of 1,850 points, supports Adobe Premiere GPU accelerated rendering, 4K proxy file generation speed increased by 40%
Cooling revolution: Dual ice blade fan + graphene heat sink combination, surface temperature is controlled below 38℃ when running at full load, noise ≤28dB
WiFi 6 smart diversion + Bluetooth 5.1 multi-device matrix
Wireless network: Intel AX201 network card supports 160MHz bandwidth (theoretical rate 2.4Gbps), equipped with Smart Connect intelligent traffic diversion technology:
Prioritize the allocation of 5GHz band to video conferencing/cloud disk synchronization (transmission efficiency increased by 65%)
2.4GHz automatically carries low-traffic tasks such as printing/scanning, and multi-device concurrent delay is reduced by 52%
Bluetooth ecosystem: Bluetooth 5.1 supports 1 to 7 multi-device connection, using adaptive frequency hopping spread spectrum (AFH) technology:
When the mouse/headphone/handwriting tablet is connected simultaneously, the ability to resist microwave oven/wireless phone interference is increased by 3 times
The transmission distance is extended to 20 meters (barrier-free environment), and the screen projection on the conference room partition wall is not stuck
Prioritize the allocation of 5GHz band to video conferencing/cloud disk synchronization (transmission efficiency increased by 65%)
2.4GHz automatically carries low-traffic tasks such as printing/scanning, and multi-device concurrent delay is reduced by 52%
Bluetooth ecosystem: Bluetooth 5.1 supports 1 to 7 multi-device connection, using adaptive frequency hopping spread spectrum (AFH) technology:
When the mouse/headphone/handwriting tablet is connected simultaneously, the ability to resist microwave oven/wireless phone interference is increased by 3 times
The transmission distance is extended to 20 meters (barrier-free environment), and the screen projection on the conference room partition wall is not stuck
Dual full-function Type-C builds a mobile workstation
Left interface: Type-C (USB3.0+DP1.4) supports external 8K display or Dock expansion dock, and realizes data/video/power supply three-way in one line
Right interface: 100W PD Type-C fast charging (compatible with mobile phones/tablets), charging to 60% in 30 minutes (58Wh high-density battery)
Expansion capability: HDMI 1.4+USB3.0+RJ45 Gigabit Ethernet port, can build a three-screen stock trading system or a 4K medical imaging workstation
Right interface: 100W PD Type-C fast charging (compatible with mobile phones/tablets), charging to 60% in 30 minutes (58Wh high-density battery)
Expansion capability: HDMI 1.4+USB3.0+RJ45 Gigabit Ethernet port, can build a three-screen stock trading system or a 4K medical imaging workstation
15.6-inch anti-blue light eye protection screen: visual engineering for long-term office work
Display technology: 1920×1080 IPS matte screen (16:9 golden ratio), passed TÜV low blue light certification + DC dimming:
The harmful blue light band filtering rate reaches 45%, and the eye fatigue index decreases by 33% after 8 hours of continuous document processing
250nit brightness + 72% NTSC color gamut, meeting the basic needs of interior design sketch color calibration
Acoustic system: Waves MaxxAudio Pro tuned dual speakers, video conference voice enhancement mode can identify speakers 8 meters away
The harmful blue light band filtering rate reaches 45%, and the eye fatigue index decreases by 33% after 8 hours of continuous document processing
250nit brightness + 72% NTSC color gamut, meeting the basic needs of interior design sketch color calibration
Acoustic system: Waves MaxxAudio Pro tuned dual speakers, video conference voice enhancement mode can identify speakers 8 meters away
Military-grade magnesium aluminum body + enterprise-level security solution
Structural design: A/C surface uses 6-series aviation aluminum (anodized process), passed 26 MIL-STD-810G tests:
1.2 meters drop without damage/hinge after 20,000 opening and closing tests, tolerance controlled within 0.1mm
Weight is only 1.9kg, thickness is 20mm, 15% more portable than traditional business notebooks
1.2 meters drop without damage/hinge after 20,000 opening and closing tests, tolerance controlled within 0.1mm
Weight is only 1.9kg, thickness is 20mm, 15% more portable than traditional business notebooks
Data protection:
Fingerprint power two-in-one button (0.25 seconds to unlock, false recognition rate <0.002%).
Physical camera baffle + Kensington lock slot, optional vPro platform for remote management.
Physical camera baffle + Kensington lock slot, optional vPro platform for remote management.
OEM laptop customized solution
1.Hardware modular design
Memory supports dual-channel DDR4 3200MHz (up to 64GB), NVMe/SATA dual-protocol M.2 slot (up to 4TB).
Reserved M.2 2230 expansion slot (4G module or Intel AX210 WiFi can be installed) 6E network card).
Reserved M.2 2230 expansion slot (4G module or Intel AX210 WiFi can be installed) 6E network card).
2.Cross-industry deep adaptation
Education: Pre-installed ExamSoft anti-cheating system + splash-proof keyboard (IP52 certification).
Medical industry: Optional antibacterial coating shell + RFID identification module, adapted to the hospital IoT environment.
Government office: Support national secret algorithm TPM 2.0 chip + Kirin OS dual system switching.
Medical industry: Optional antibacterial coating shell + RFID identification module, adapted to the hospital IoT environment.
Government office: Support national secret algorithm TPM 2.0 chip + Kirin OS dual system switching.
3.Intelligent power management system
100W PD adapter compatible with mobile phone/tablet fast charging (PPS 3.3-21V dynamic adjustment).
Battery intelligent maintenance mode (charge and discharge cycle life extended to 1,200 times).
Battery intelligent maintenance mode (charge and discharge cycle life extended to 1,200 times).
Scenario application evidence
Cross-border business: Teams video conferencing + multi-language real-time subtitles (AI noise reduction microphone) + 4G module hot standby, network disconnection recovery time <3 seconds
Creative light office: MX450 accelerates Photoshop neural network filters, portrait fine-tuning efficiency increased by 55%
Industrial inspection: -20℃ cold start + IP53 dustproof, with stylus to achieve outdoor work order signing and approval
Creative light office: MX450 accelerates Photoshop neural network filters, portrait fine-tuning efficiency increased by 55%
Industrial inspection: -20℃ cold start + IP53 dustproof, with stylus to achieve outdoor work order signing and approval
