01
Fanless industrial mini PC
Product Detailed Specification
| Processor specifications | CPU: | Intel Comet Lake-U 15M Core i7-10510U i5-10210U i3-10110U 5205U （Optional） | Internal storage | Memory type: | DDR 42133MHz/2400MHz/2666MHz |
| Memory slot: | 2XDDR4 S0-DIMM | ||||
| video card: | Intel®UHD Graphics | Power port: | 1XDC Jack 5.5*2.5mm(12-19V) | ||

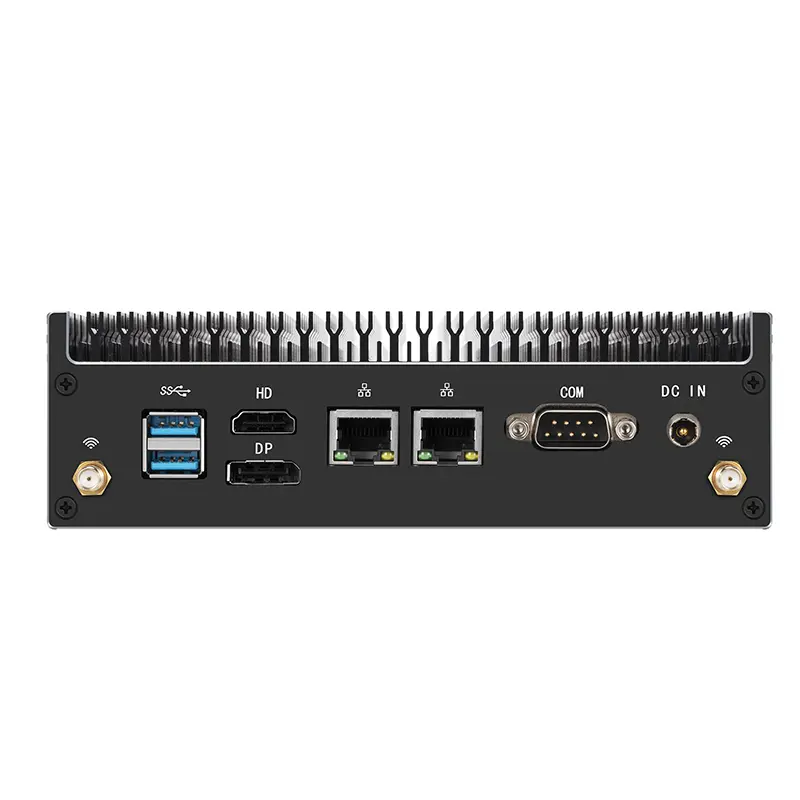

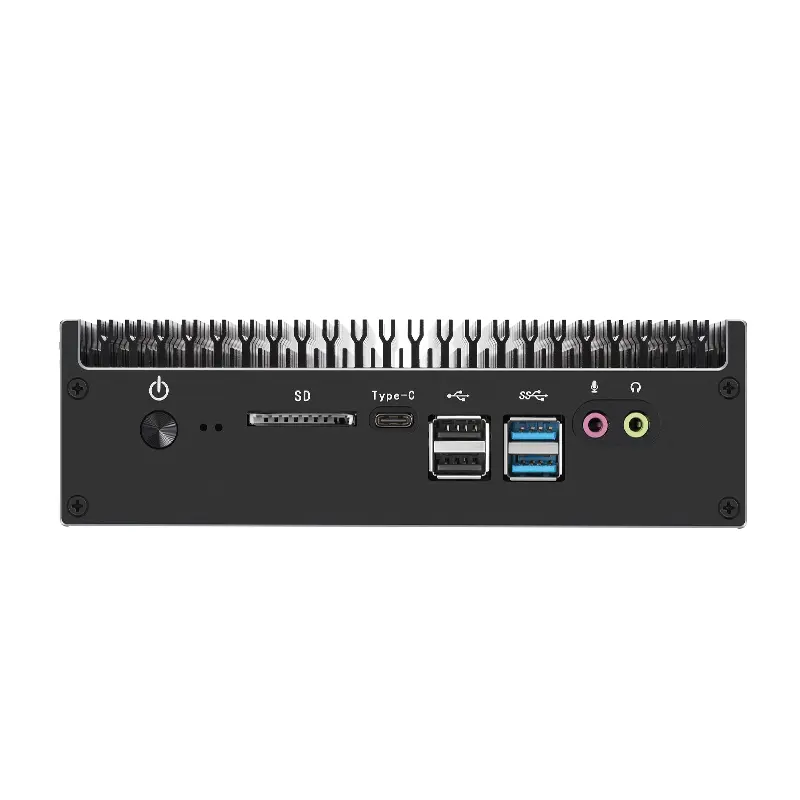

| Front panel | Power-on key / indicator light: | 1 Power-on button 1XPower LED 1XHDD LED | Back panel | network interface: | 1*RJ45 1000M |
| SD Card: | 1XSD Card | Displays the interface: | 1XHDMI 0ut 2.0 1XDP 1.2 | ||
| USB joggle: | 2XUSB3.0 2XUSB2.0 | USB joggle: | 2XUSB3.0 | ||
| Type-C: | 1XType-C | COM mouth: | 1XRS232 DB9 | ||
| Audio interface: | 1×3.5mm earphone 1×3.5mm MIC in | ||||
| Extended slot | WiFi slot: | 1 XM. 22230 slot (WIFI / BT support) WIFI 1:802.11 b / g / n / AC / AX Bluetooth 4.0 or above |
Other parameters | Appearance size: | 170*126*51.3mm |
| SSD slot: | 1*M. 2 2280 slot (SATA / NVME Gen3 X4 support) | Ontology weight: | About 945g | ||

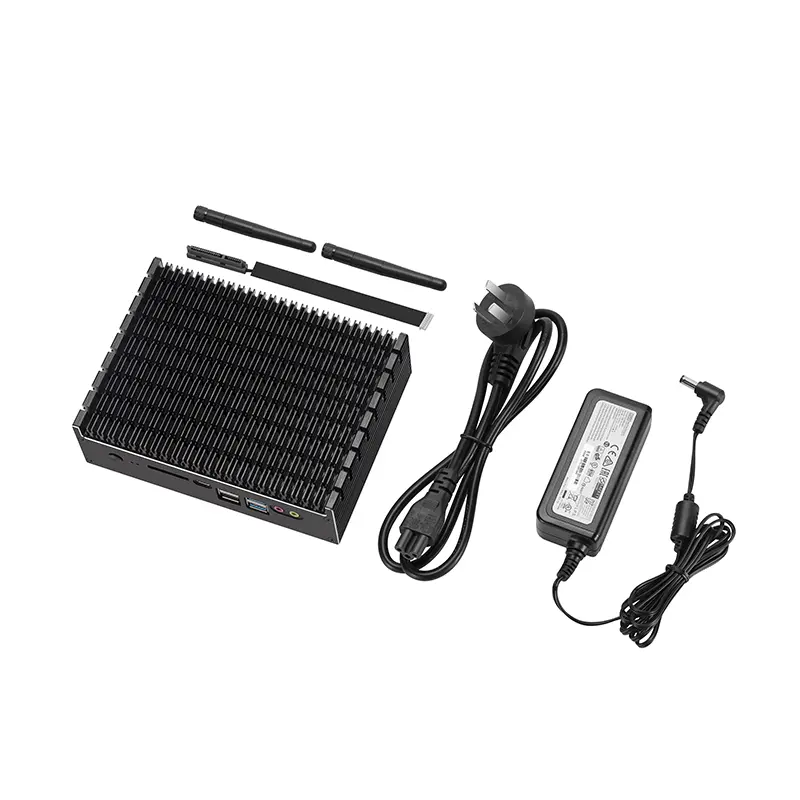

| HDD: | 1*SATA HDD 2.5inch (optional) | Power adapter: | 12V-19V 40W | ||
| BI0S support: | AMI UEFI BI0S, Support for PXE, WOL | ||||
| Work environment： | Temperature: 0~50℃ Humidity: 5%~95% | Storage environment： | Temperature: -20~70℃ Humidity: 5%~95% | ||
Core architecture advantage: redefine the balance between space and performance
As a Compact Desktop designed for digital office, industrial IoT and creative design, WG1 unleashes the powerful performance of Intel's 10th generation Core i7-10510U processor (6 cores, 12 threads, 4.9GHz turbo frequency) in a 0-50℃ environment with its ultra-compact body of 170×126×51.3mm and desktop-level expansion capabilities. It supports dual 4K output, Gigabit network aggregation and direct connection with industrial protocols, meeting the diverse needs of small and medium-sized enterprise offices, automated production line control, smart retail terminals and other scenarios.
Compact Desktop core value analysis
1. Three-screen collaborative workstation: space efficiency revolution
HDMI 2.0 (4K@60Hz) + DP 1.2 (8K@30Hz) + Type-C (4K@60Hz PD power supply) build a multi-tasking vision:
Business scenario: main screen video conferencing, secondary screen document processing, Type-C connected portable screen display data dashboard
Industrial control: HDMI display SCADA system, DP interface output device heat map, RS232 direct connection PLC debugging
Intel UHD Graphics supports three-screen independent color configuration (sRGB/Adobe RGB mode one-click switch)
2. Dual Gigabit Ethernet port + RS232: intelligent bridge between traditional and modern devices
Dual RJ45 supports link aggregation (2Gbps bandwidth) or network isolation:
Enterprise-level NAS acceleration (SMB multi-channel transmission efficiency increased by 70%)
Industrial Internet of Things gateway (connect 32 Modbus TCP devices at the same time)
RS232 serial port (±15kV ESD protection) compatible with traditional industrial protocols such as CNC machine tools and medical equipment
3. Dual-mode storage architecture: a golden combination of speed and capacity
M.2 NVMe SSD (3500MB/s read) + 2.5-inch HDD (seismic design, 16TB capacity):
Designer exclusive: SSD runs Adobe family bucket, HDD stores 4K material library
Edge computing: SSD caches real-time data, HDD long-term log storage (supports RAID 1)
Technological innovation and industrial-grade reliability

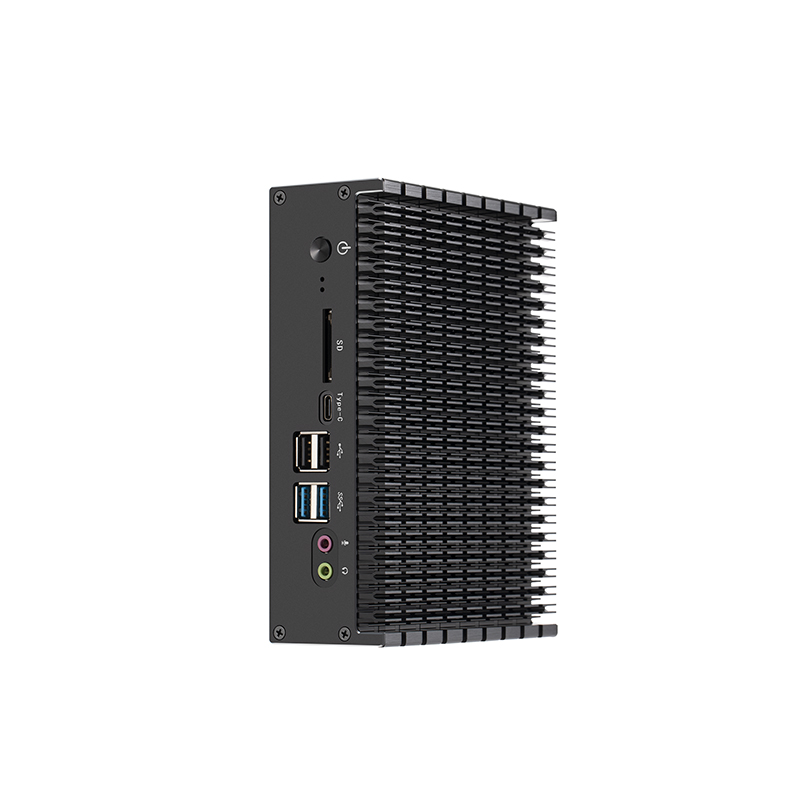

1. Intelligent cooling system
Fanless module cooling
The cooling area of the all-aluminum body is 60% higher than that of the traditional Compact Desktop, and the surface temperature at full load is ≤41℃
2. Industrial-grade expansion ecology
M.2 2230 slot optional:
WiFi 6E module (6GHz band, 2.4Gbps)
5G module (Sub-6GHz, 3.5Gbps peak rate)
Bluetooth 5.0 Mesh networking, concurrent control of 50+ smart devices
3. Wide voltage and temperature design
12-19V power input compatible with vehicle inverter (fluctuation tolerance ±25%)
-20℃ cold start technology, IP40 dustproof structure to cope with dusty environment
Scenario-based solutions
1. Smart retail terminal
Dual-screen interaction: main screen displays products, sub-screen plays advertisements (HDMI+DP synchronous output)
Type-C powered electronic price tag, SD card quickly updates promotional content
2. Telemedicine workstation
DP interface directly connected to DICOM calibration display, RS232 connected to vital signs monitor
Antibacterial coating shell (optional) + medical grade EMC certification
3. Automated production line control
Stable and efficient factory for production line machines
Edge yield analysis (Python algorithm acceleration, response <10ms)
OEM/ODM customization service
1. Hardware deep adaptation
Extended PoE+ network port (30W power supply industrial camera/AP)
Customized GPIO control board (12-channel digital I/O, ±12V tolerance)
2. Enterprise-level software ecosystem
Pre-installed Windows 11 IoT Enterprise Edition/Ubuntu LTS
Provide OPC UA/Profinet industrial protocol stack SDK
As a benchmark compact desktop for miniaturized computing, NX-3000 has become an ideal hub for enterprise digital transformation, smart factory upgrades and creative design through its modular architecture and industrial-grade stability. Now it is open to deep customization of hardware configuration, cooling solutions and appearance components, providing five-year global warranty and 24/7 technical support to help customers build cost-effective digital infrastructure.
